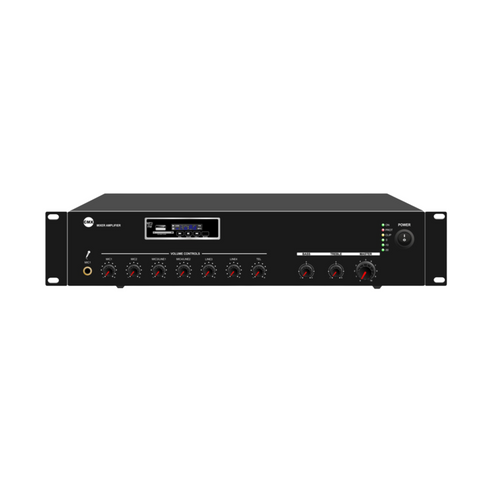

CMX EA‑240Z 5‑Zone Mixer Amplifier – 240W RMS

The CMX EA‑240Z is a versatile 5‑zone mixer amplifier designed for commercial audio installations requiring multiple zone control, integrated media playback, and robust audio performance. With built-in USB/SD, Bluetooth, and FM radio support, it’s ideal for retail, hospitality, education, and public venues.

This 240W RMS amplifier features five independent 100 V zone outputs and an additional zone that supports 100 V, 70 V, or low-impedance speaker connections (4–16 Ω). The front panel provides intuitive access to media playback, zone control, and microphone input mixing.

Key Features:

5 × 100 V zone outputs + 1 × mixed zone (100 V / 70 V / 4–16 Ω)
USB/SD MP3 player, FM radio, Bluetooth audio with IR remote
5 Microphone inputs (XLR); Mic1 with VOX priority and mute
2 Auxiliary inputs: RCA (Aux1) and ¼″ jack (Aux2)
Preamp Out and Amp In for chaining additional gear
+48 V phantom power (Mic1 & Mic2)
3‑band EQ per input channel (Low / Mid / High)
External chime/siren trigger input for alerts
Short circuit, clip, overload, and over-temperature protection
Status LEDs for signal, playback, and Bluetooth activity

Specifications:

Feature	Specification
Rated Output Power	240 W RMS
Zone Outputs	5 × 100 V zones + 1 mixed output (4–16 Ω / 70 V / 100 V)
Microphone Inputs	Mic1–5 (XLR), Mic1 with VOX and mute
Auxiliary Inputs	Aux1 (RCA), Aux2 (¼″ jack)
Media Playback	USB / SD MP3, FM radio, Bluetooth (IR remote included)
EQ	Low / Mid / High per channel, Master tone control
Chime & Siren	External trigger input
Phantom Power	+48 V for Mic1 and Mic2
Frequency Response	~60 Hz – 15 kHz (±3 dB)
Signal-to-Noise Ratio	Line ≥ 85 dB, Mic ≥ 72 dB
THD	< 0.5%
Power Supply	AC 230 V / 50–60 Hz (dual-voltage for global markets)
Dimensions	484 × 350 × 88 mm
Weight	8.6 kg

Why Choose the CMX EA‑240Z?

Ideal for multi-room audio control with independent zone outputs
All-in-one source: MP3, FM, Bluetooth — no external player required
Built-in protection ensures reliable long-term use
Flexible input/output for integration with PA systems or conference audio

Streamlined Audio Control for Commercial Spaces

The CMX EA‑240Z makes it simple to manage audio across five distinct zones while offering media playback and remote control functionality. Its compact rack-mountable design, robust construction, and integrated safety protections make it an essential amplifier for installations that demand reliability and control.
