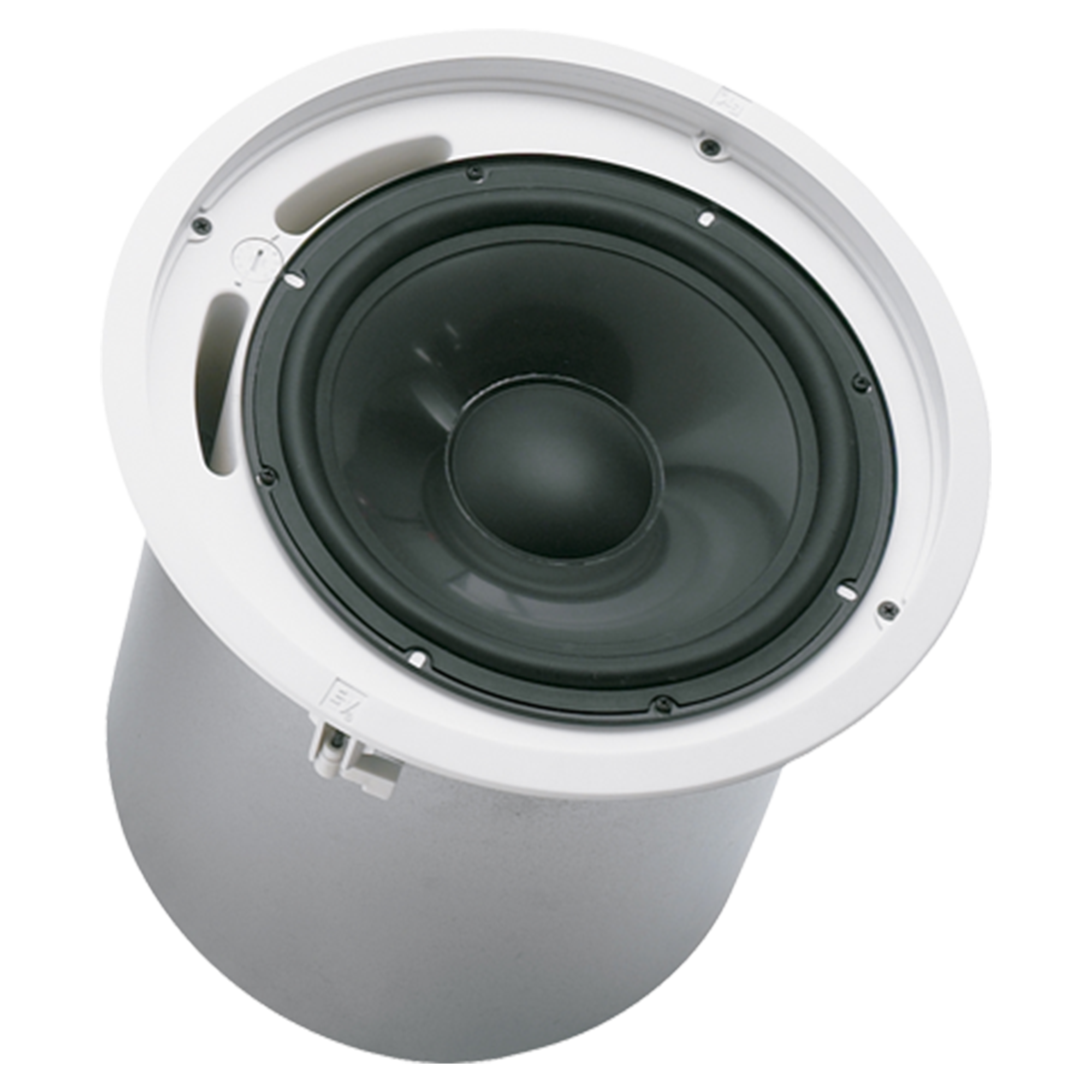

Electro-Voice EVID C10.1 10″ high‑power ceiling subwoofer

Electro-Voice EVID C10.1 high‑power ceiling subwoofer Features:

• Supplemental LF for ceiling systems
• High-excursion woofer in ported enclosure for extended lows
• Low pass network with overload protection
• Integrated transformer for 70 V, 100 V, or 8 Ω use
• Front-panel mode/wattage selector
• Internally damped heavy-gauge steel enclosure
• Safe, easy installation with included tile bridge and mounting ring
• White semi-gloss perforated grille
• Complete package, requires no additional accessories

The Electro-Voice EVID C10.1 high‑power ceiling subwoofer is a complete low frequency ceiling subwoofer package. The EVID C10.1 is designed to augment the low frequency response of any EVID ceiling speaker. The package consists of a bezel assembly, grille, rear enclosure, 10-inch loudspeaker and internal linematching transformer. The EVID C10.1 loudspeaker utilizes a 2nd order crossover network to provide the correct band-pass frequency response for use with any EVID Ceiling loud speaker. The C10.1 utilizes a transformer that offers a selection of 7.5 (70-V only), 15, 30 or 60 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8 ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semigloss white powder-coated enamel. The baffle and bezel are constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from zinc-plated, heavy gauge steel. The rear enclosure, with fiberglass damping material, provides an optimum internal volume for extended low-frequency performance. A rear cover, with provisions for a junction box fitting, provides access to a 4-pin terminal block that allows direct connection to the speaker with 12 gauge wire and provides full-range pass through to additional speakers. A tile bridge is included for safe suspension of the C10.1 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles. The EVID line of ceiling speakers has been designed to work together as a complete system in a wide range of different ceiling constructions. They provide wide dispersion, high-efficiency, high-maximum output, ease of installation, and wide-range reproduction of music.
