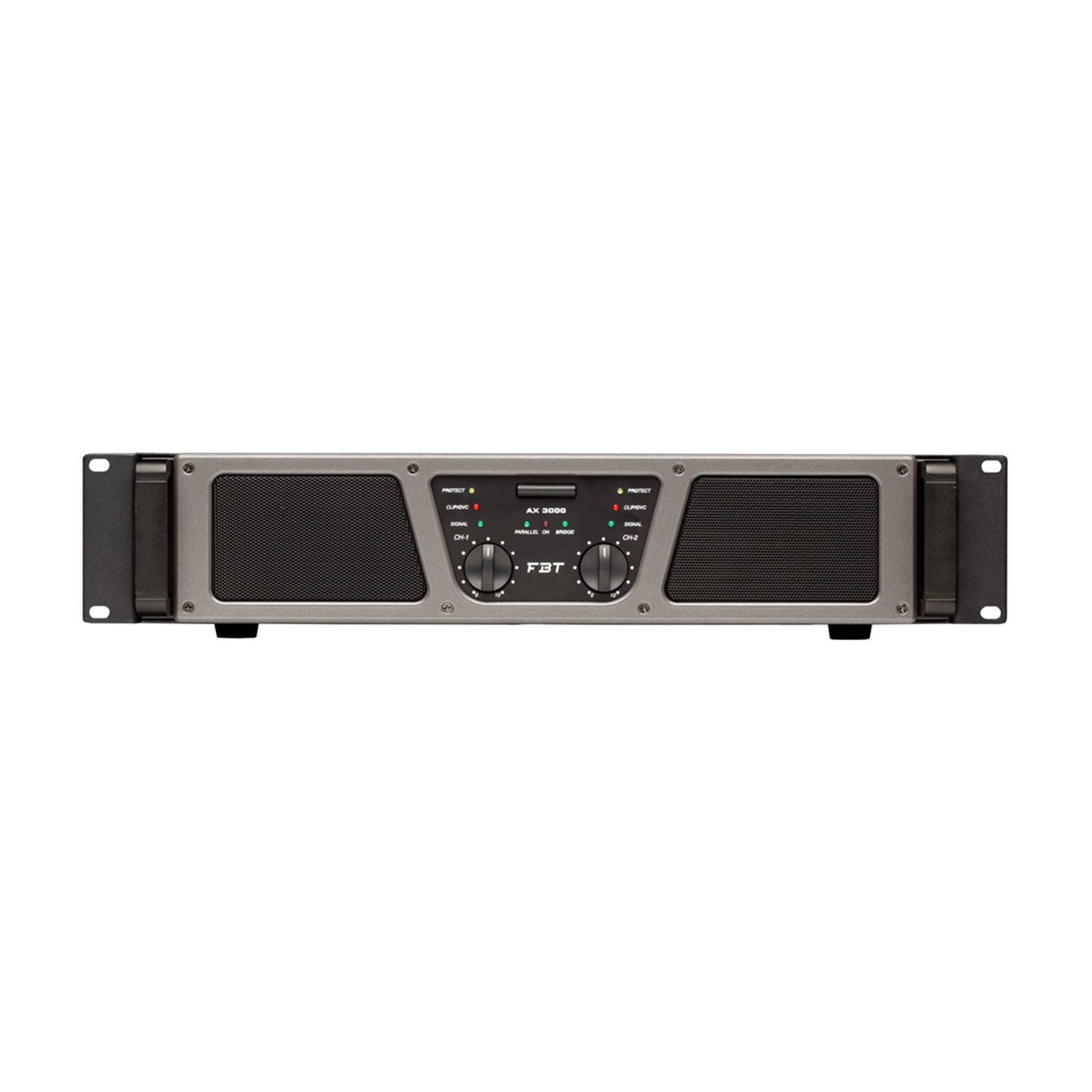

FBT 2-Channel Power Amp 3000W AX 3000

PRODUCT DESCRIPTION
2 Ch. Power Amp - 2x1500Wrms (4ohm) - 3000Wrms (8ohm bridge)

Suitable applications:
Amplification for live sound reinforcement speaker systems in clubs, discos, piano bar, conference halls, houses of worship, sports arenas, schools, theatres, mobile D.J. use, recording studio monitors, foreground music reproduction, etc.

Tour tough built, sleek design, impressive specs, excellent cost per watt performance, efficient under any application. With these credentials, FBT proudly presents the new AX series of power amplifiers, the perfect power mates for sound reinforcement speaker systems. The AX series consists in four 2HU rack mount models, from 800 to 3000 watts, all designed with sophisticated power amp circuits for improved quality, stability and reliability, all equipped with Stereo-Parallel-Bridge operation mode, dB sensitivity switch (26-29-32dB), limiter, ground lift, XLR/Jack inputs (plus extra RCA input on AX 800), Speakon/Binding posts outputs. KEY FEATURES
Both channel driven 8 ohm 1% THD Continous/impulsive: 880/650W
Both channel driven 4 ohm 1% THD Continous/impulsive: 1300/1500W
Bridge 8ohm 1% THD: 3600/3000W
Input impedance: 20k balanced
Signal to noise ratio S/N: >100dB
Total harmonic dist. (1kHz-4ohm): <0.03%
Frequency response: 20Hz - 40KHz -6dB
Damping Factor: >230
Class: H-2 step
Maximum power consuption: 3600VA
Power supply voltage: 120 or 230 Vac 50/60 Hz
Protections: short circuit /thermal
Connectors: IN: XLR/Jack - OUT: Speakon Net Dimension (WxHxD): 482 x 88 x 290mm
