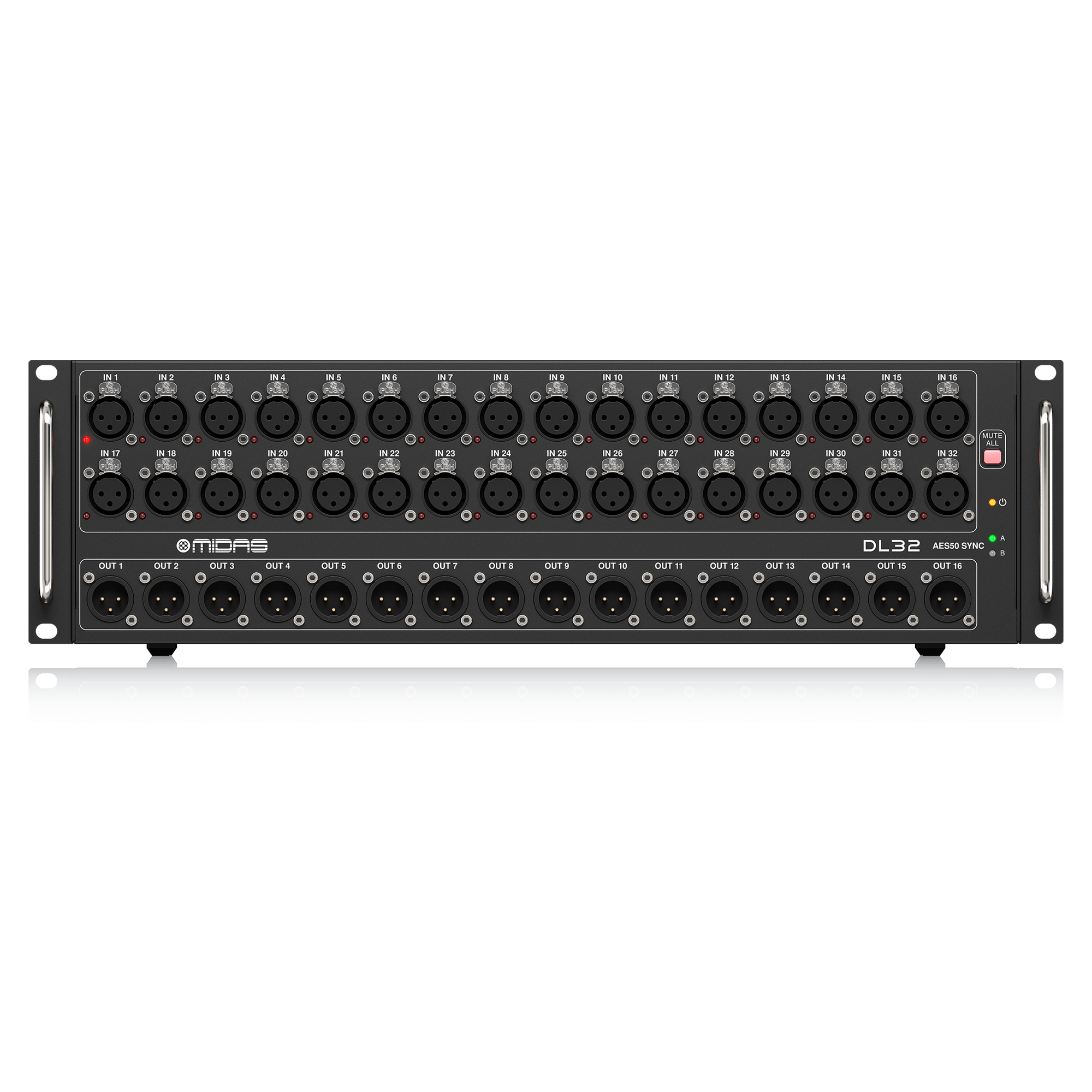

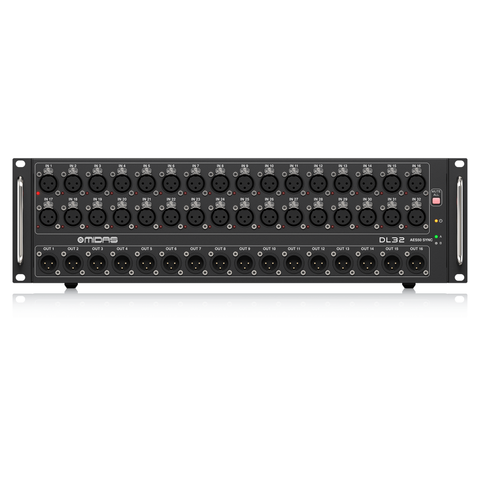

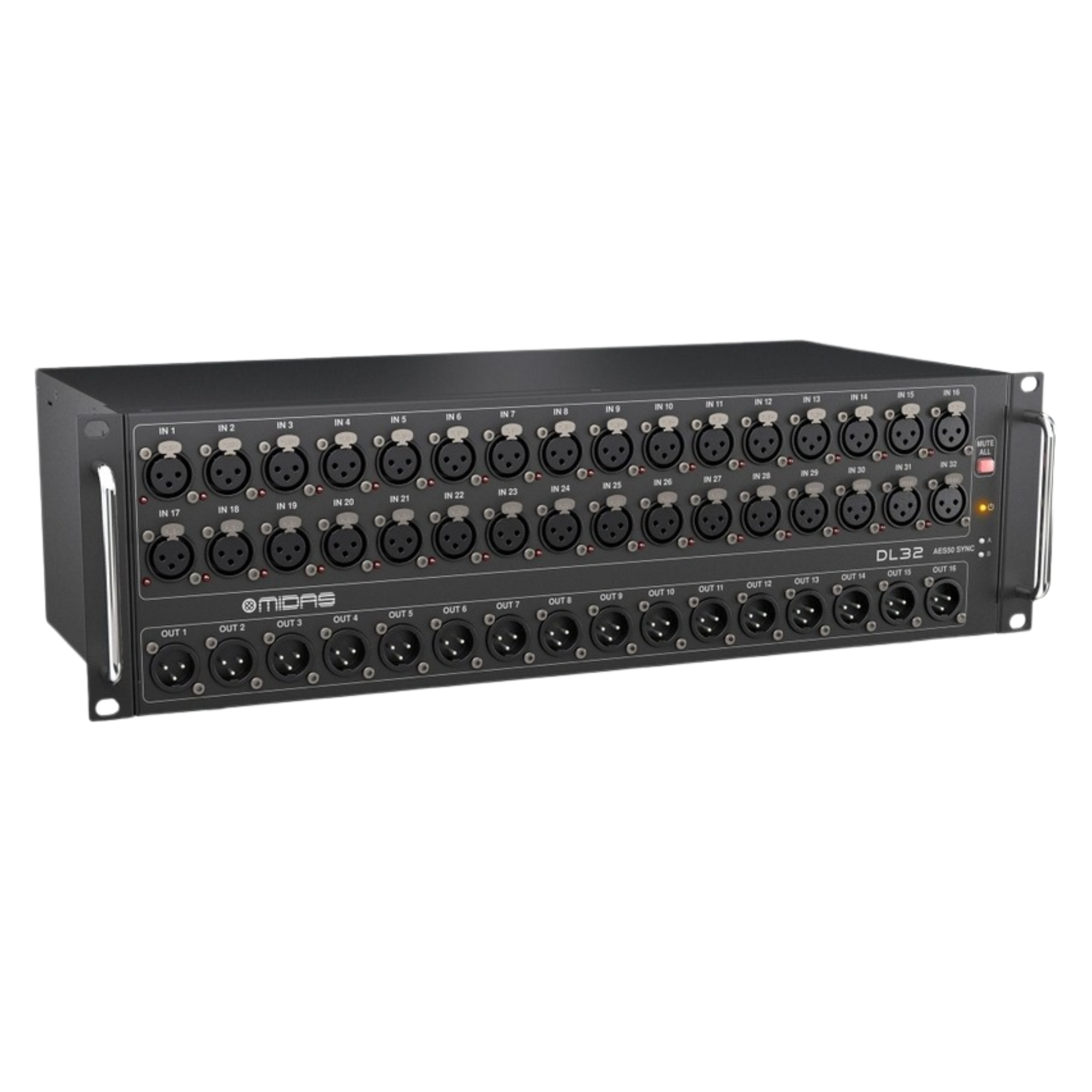

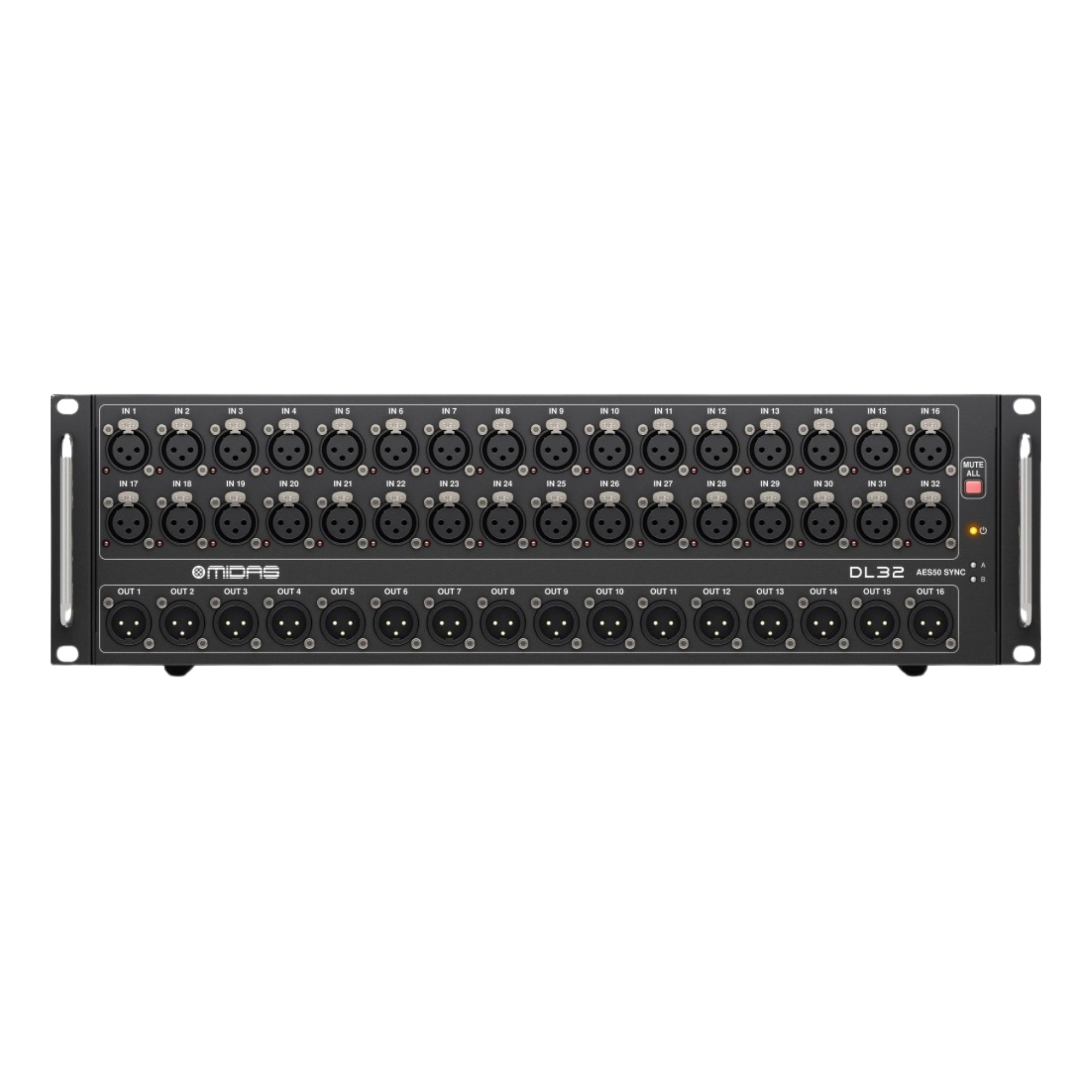

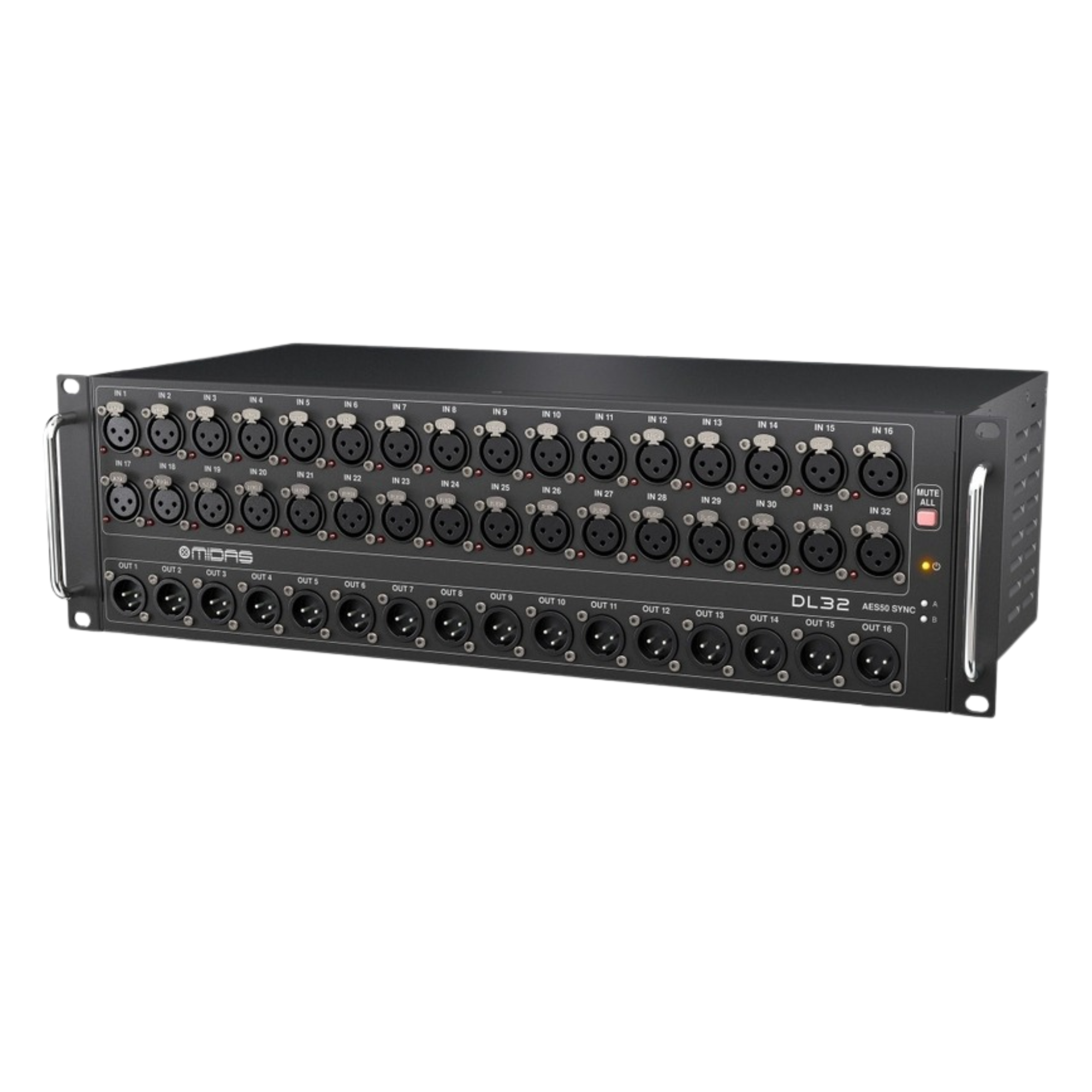

Midas DL32 Digital Stage Box

Midas DL32 32-Input / 16-Output Digital Stage Box

The Midas DL32 Digital Stage Box is a professional remote I/O system designed for live sound, touring, theatres, houses of worship, installations, and digital mixing applications. It combines 32 Midas PRO Series remote-controllable microphone preamps with 16 balanced analogue XLR outputs, allowing stage signals to be carried to compatible digital consoles through a single shielded Cat 5e connection.

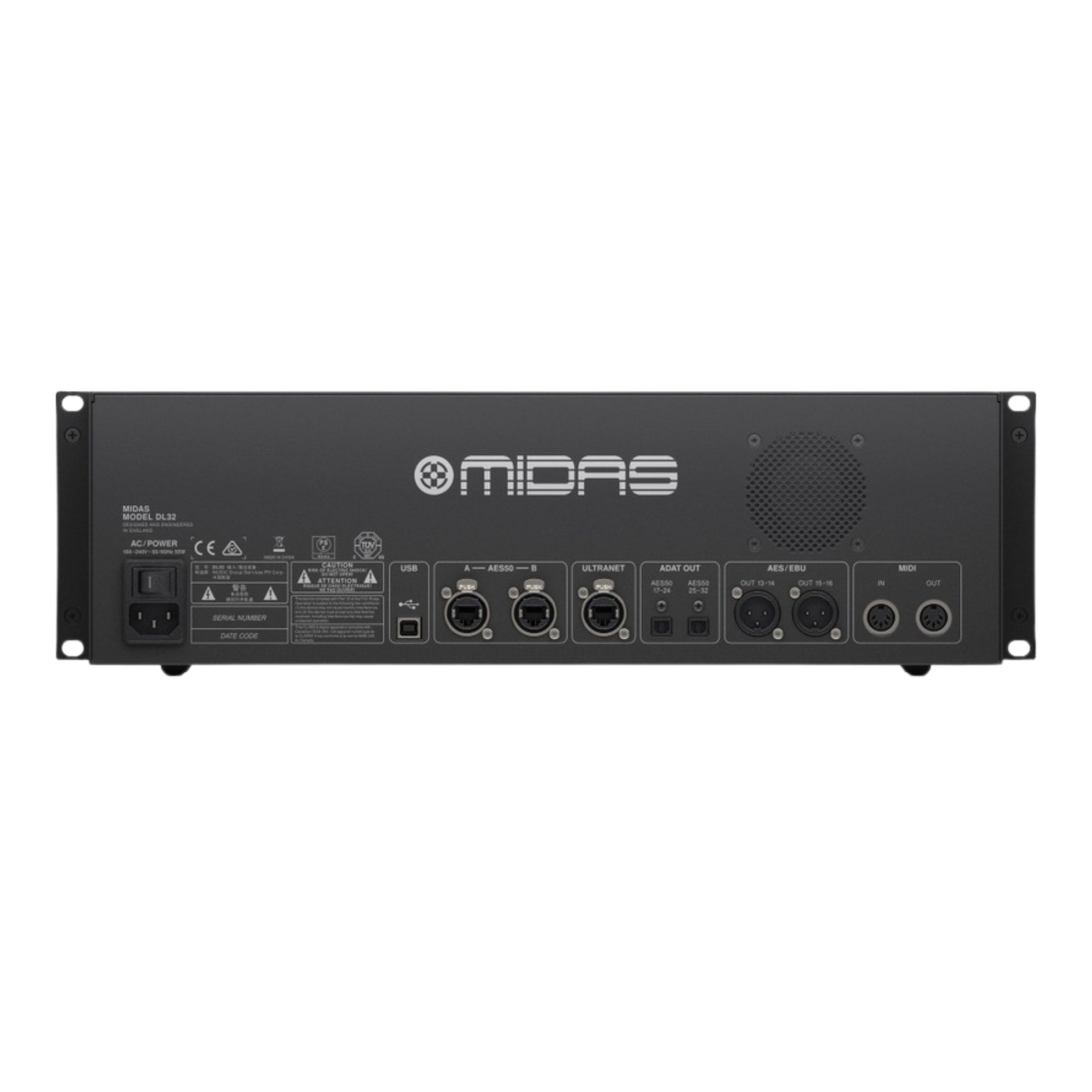

Built around Klark Teknik AES50 SuperMAC networking, the DL32 supports high-channel-count digital audio with low deterministic latency. Additional ULTRANET, ADAT, AES/EBU, MIDI, and USB connectivity make it suitable for expanding professional Midas systems and integrating monitoring, outboard equipment, and other digital audio devices.

Key Features

• 32 Midas PRO Series Mic Preamps: Remote-controllable microphone preamps provide professional input gain control and detailed signal capture.
• 16 Balanced XLR Outputs: Provides analogue return connections for stage monitors, amplifiers, powered speakers, and other equipment.
• Dual AES50 Ports: Klark Teknik SuperMAC networking carries high-channel-count digital audio, control data, and clocking over shielded Cat 5e cable.
• Up to 100 m AES50 Cable Runs: Supports long-distance stage-to-console connections with compatible shielded Cat 5e cabling.
• 48-Channel Bidirectional AES50 Networking: Each AES50 connection supports up to 48 channels of 24-bit digital audio.
• ULTRANET Output: Provides 16-channel digital audio distribution to compatible personal monitoring systems and Turbosound loudspeakers.
• Dual ADAT Optical Outputs: Two Toslink connections provide up to 16 channels of digital audio for compatible recording and outboard equipment.
• AES/EBU Outputs: Provides professional digital audio connectivity through balanced XLR connections.
• MIDI In & Out: Supports integration with compatible MIDI-controlled systems, sound modules, and production equipment.
• USB System Update Port: Allows firmware and system updates through a computer connection.
• 48V Phantom Power: Individually switchable phantom power is available on the microphone inputs for compatible condenser microphones and active DI boxes.
• 24-Bit Conversion: Cirrus Logic converters operate at 44.1 or 48 kHz for professional digital audio performance.
• Low Network Latency: Stagebox-to-console-to-stagebox operation is specified at approximately 1.1 ms.
• 2U Rackmount Design: Compact professional chassis fits standard 19-inch equipment racks.
• Road-Ready Construction: Designed for touring, installation, live production, and professional stage environments.

Specifications

Why Choose the Midas DL32?

• Professional Midas Preamps: Thirty-two PRO Series preamps provide remote gain control and professional input performance.
• Single-Cable Stage Connection: AES50 carries multichannel audio, control, and clock data over one compatible Cat 5e cable.
• Extensive Digital Connectivity: AES50, ULTRANET, ADAT, AES/EBU, MIDI, and USB provide flexible integration with professional audio systems.
• Expandable M32 Ecosystem: Multiple DL32 units can be combined with compatible Midas systems for larger input and output requirements.
• Flexible Monitoring Integration: ULTRANET supports compatible personal monitor systems and network-enabled loudspeakers.
• Compact Rackmount Construction: The 2U enclosure provides substantial stage I/O without requiring a large analogue multicore system.

A Professional Digital Stage Box for Live Sound Systems

The Midas DL32 Digital Stage Box combines 32 premium remote-controlled microphone preamps, 16 analogue outputs, high-capacity AES50 networking, ULTRANET monitoring integration, ADAT, AES/EBU, and MIDI connectivity in a durable 2U rackmount enclosure. It is well suited for concerts, touring systems, theatres, houses of worship, venues, fixed installations, recording environments, and professional digital mixing workflows.
