NUX Mini Port USB Audio Interface UC-2


AED 406
AED 406
Please hurry! Only -2 left in stock
Description
Description
x

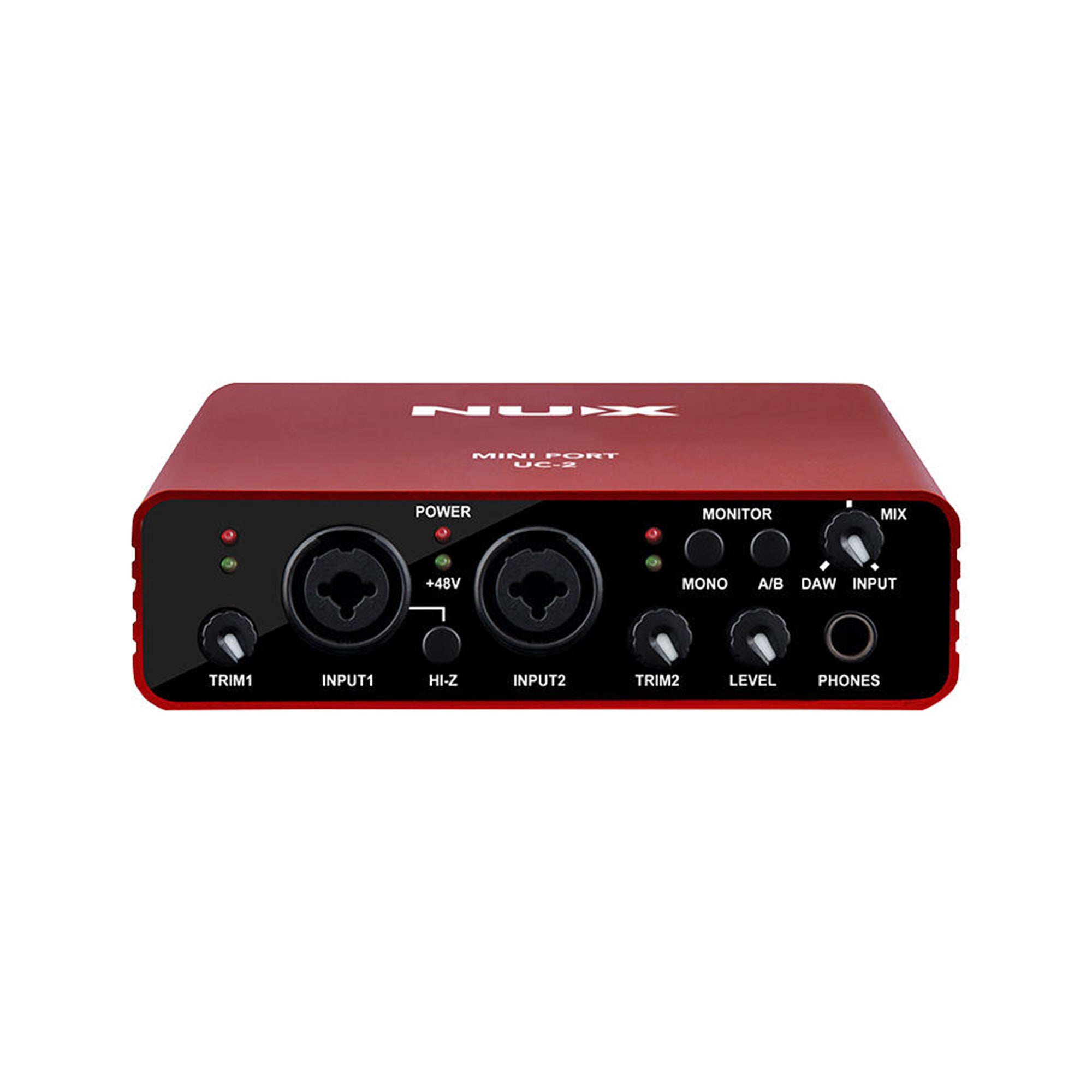

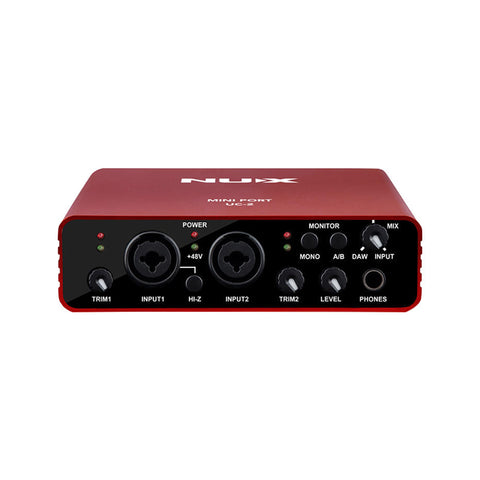

UC-2 Mini Port USB audio interface is ultra high performance device for professional musician，compatible with WINDOWS and MAC computers. It's equipped with two combo jacks of mic and Hi-Z instrument and two line level input，plus four analog output jacks. 192kHz/24bit and ultra low latency driver offer premium performance. With its compact design and stable operation, mini port is the perfect audio interface for musicians's requirement.

  • Compact and convenient USB audio interface
  • Combo jacks with Hi-Z swith for mic and high impedance inStereo headphones output 192KHz/24bit ultra high resolution
  • Low latency ASIO (Windows) and Core Audio (Mac) drivers MIDI in and out.

-Mic Inputs (A/D)-
Input Impedance: 2.7k ohm unbalanced, 5.4k ohm balanced
Max Input Level: +24dBu @ min gain, -40dBu @ max gain
Channel-to-Channel Crosstalk: <-110dB
SNR: -101dB, A-weighted
THD+N: 0.005% [-86dB] @ -1dBFS. 1kHz
Frequency Response: 20hz to 20kHz, +/-0.1dB
Preamp Gain: >40dB

-Instrument Inputs (HI-Z mode)-
Input impedance: >470k ohm, unbalanced
Maximum Input Level: 4+dBu

-Line Inputs (A/D)-
Input impedance: 20k ohm, balanced and unbalanced
Maximum Input Level: 4+dBu balanced / +1.9dBu unbalanced

-Line Outputs (D/A)-
Output Impedance: 150 ohm, unbalanced
Maximum Output Level: +1.8dBu, unbalanced
Channel-to-Channel Crosstalk: <-110dB
SNR: -103dB, A-weighted
Dynamic Range: -103dB, A-weighted
THD+N: 0.005% [-86dB] @ -1dBFS. 1kHz
Frequency Response: 20hz to 20kHz, +/-0.1dB @ 48kHz sample rate

-Headphone Output (D/A)-
Maximum Ouput: -2.5dBu @THD<0.05% into 32 ohm
Working Range: 32 ohm - 600 ohm

-Digital Signal Processing (DSP)-
Sampling Frequency: 44.1kHz 48kHz 88.2 kHz 96kHz 176.4kHz 192kHz
A/D converter: 24bit
D/A converter: 24bit
Signal Processing: 32bit

-Others-
Power Requirements: 12V DC, 1A (center positive)
Power Consumption: 450mA
Dimensions: 155mm (D) x 136mm (W) x 52mm (H)
Weight: 500g
Accessories: USB cable, Power Adaptor, Owner's Manual
