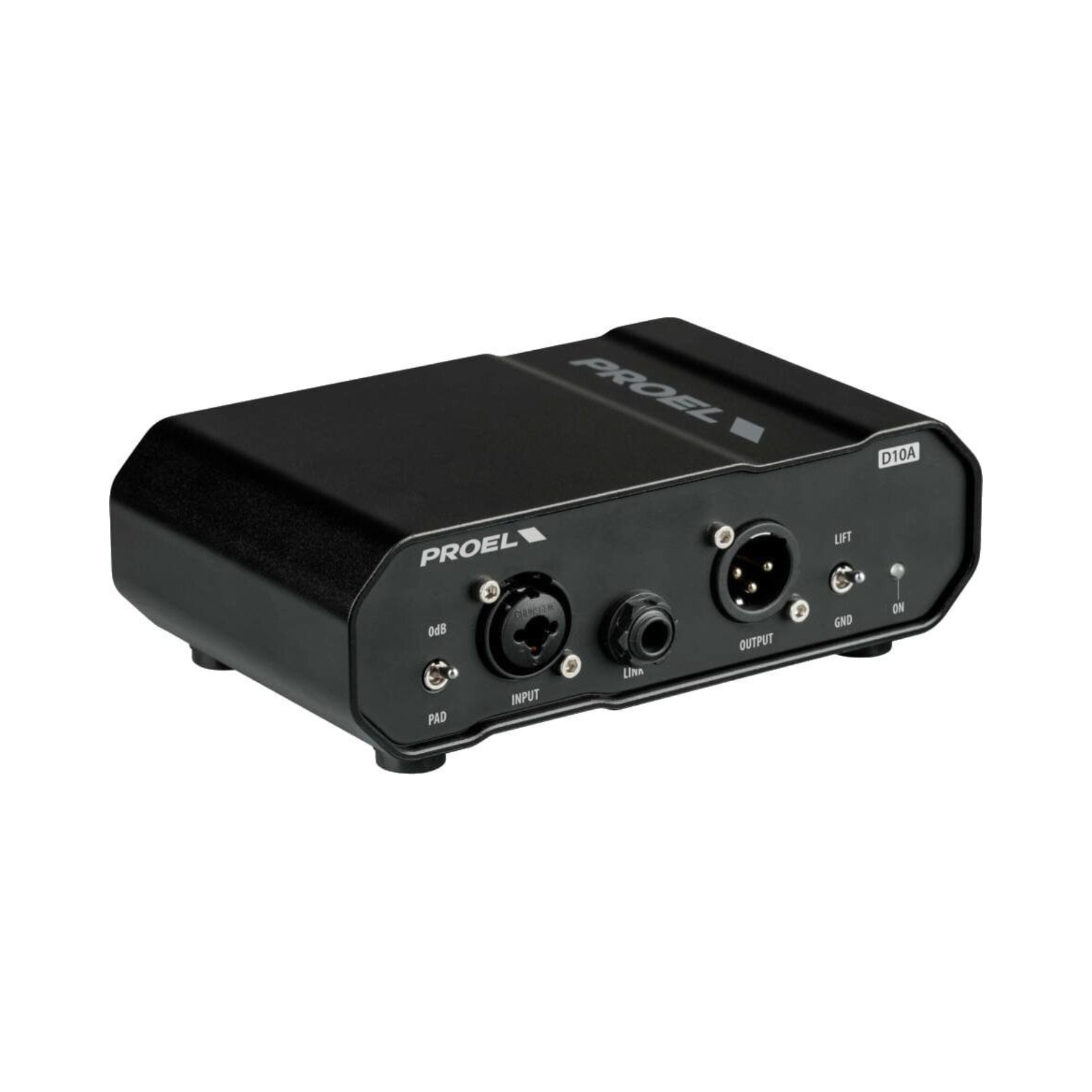

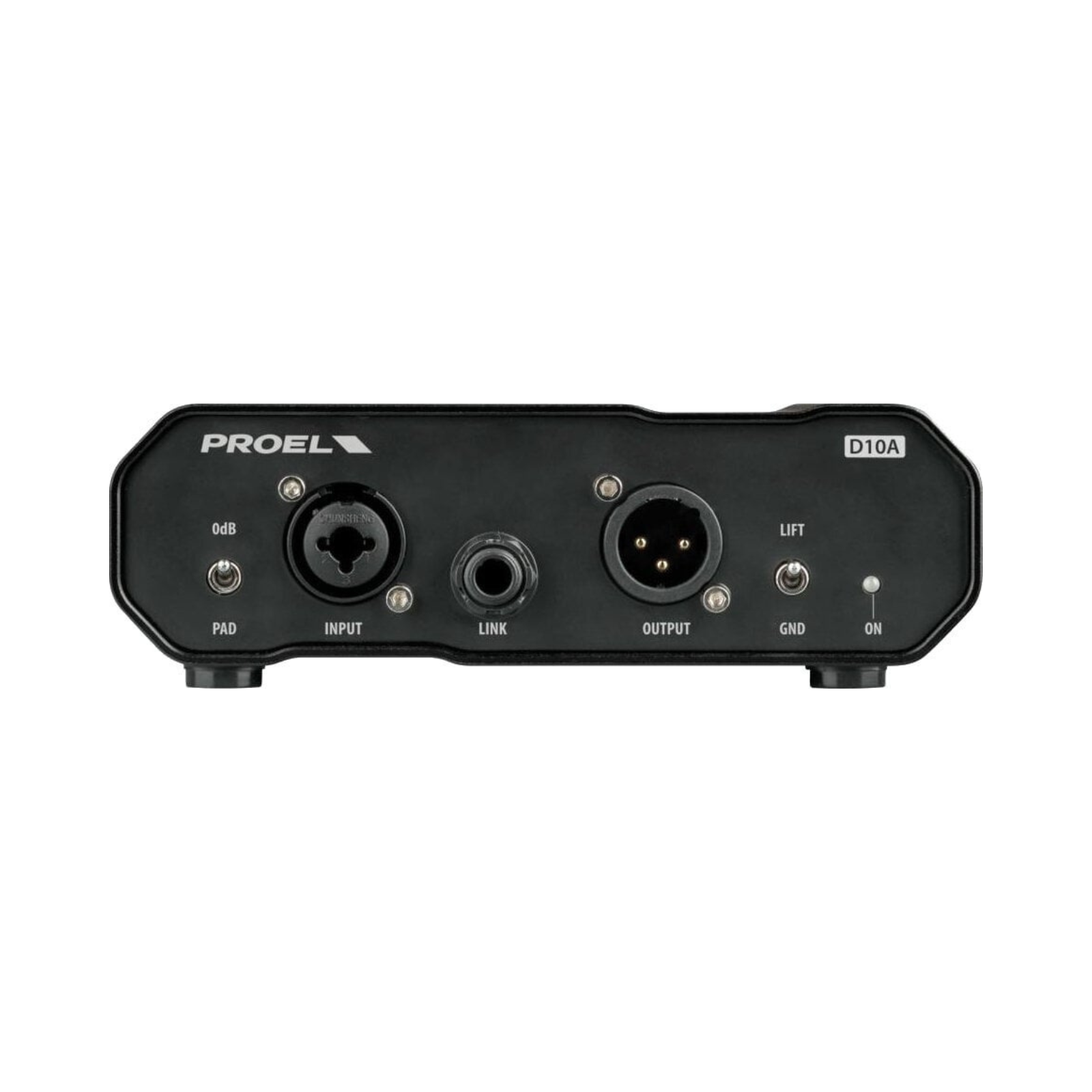

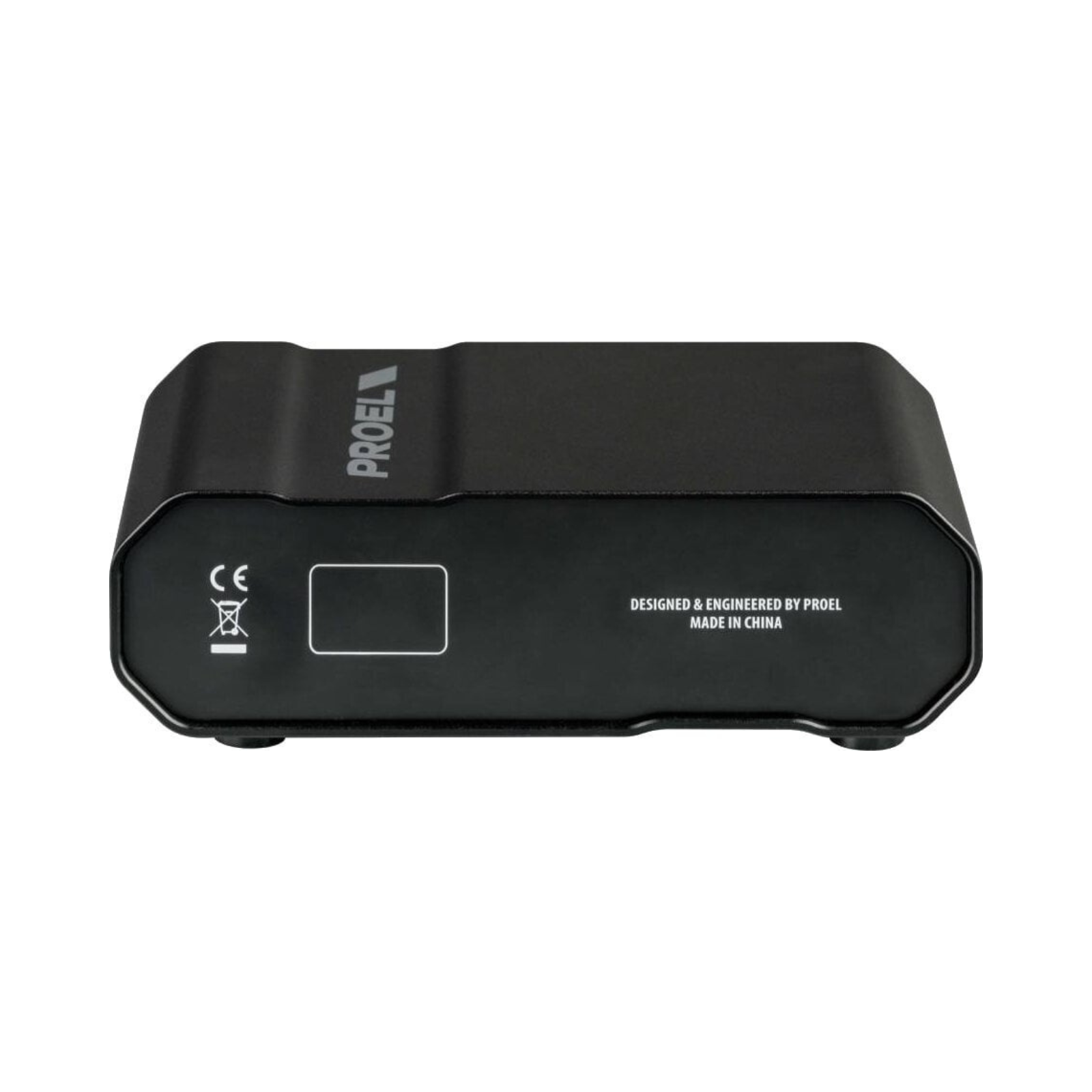

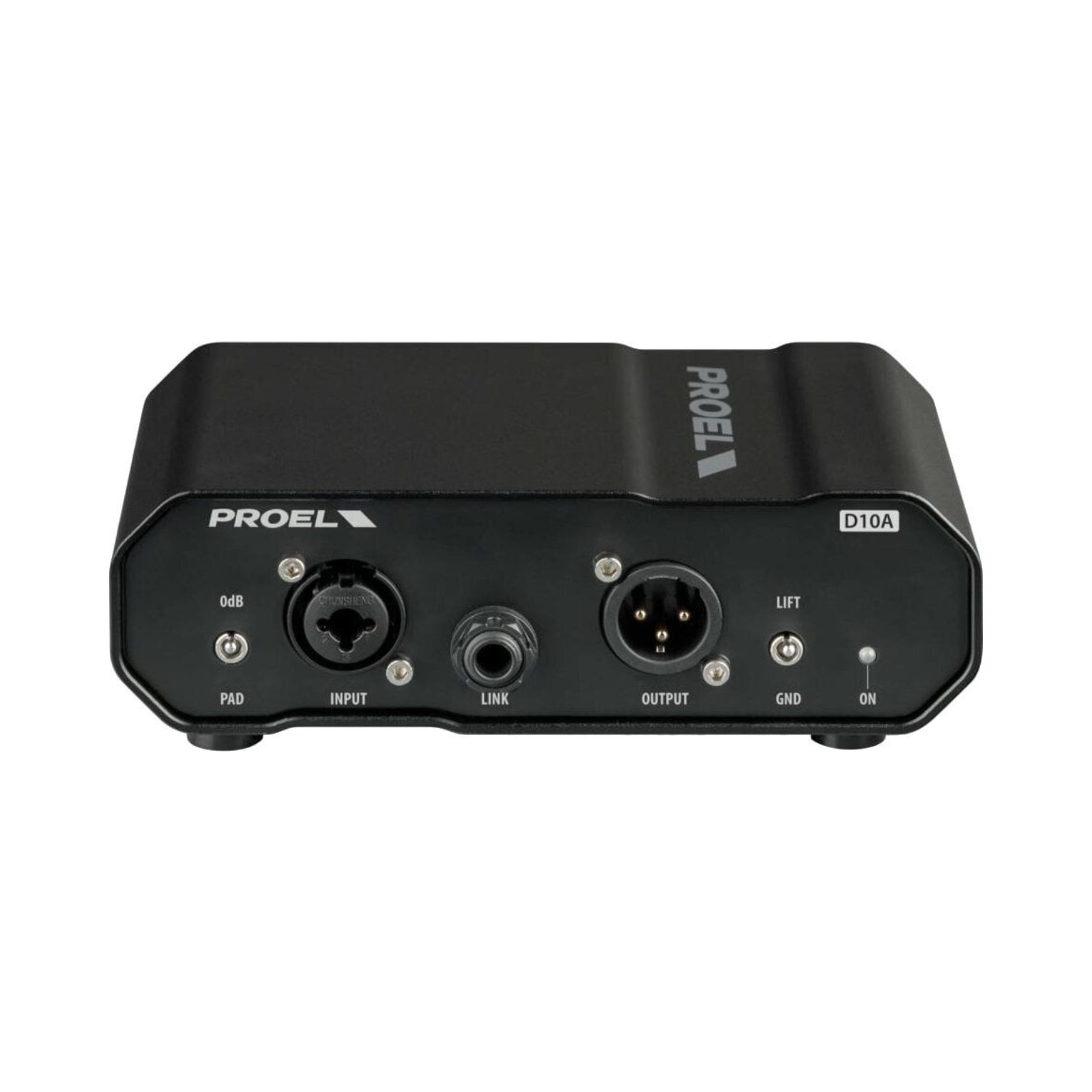

Proel D10A – Active DI Box with Transformer

The Proel D10A is a professional active direct injection (DI) box designed to convert high-impedance, unbalanced signals from instruments such as guitars, basses, and keyboards into low-impedance, balanced outputs for long cable runs into mixers or recording systems. Powered by +48V phantom power, the D10A ensures clean signal transfer, wide frequency response, and effective isolation against hum and ground loops.

Engineered with a built-in transformer, it delivers high headroom, low distortion, and minimal noise, making it an essential tool for both live and studio applications.

Key Features

Active DI design: Converts unbalanced instrument signals into balanced XLR outputs.
Transformer-isolated: Minimizes hum, noise, and ground loop issues.
Versatile inputs: Combo XLR-F / ¼″ TRS input with parallel Link/Thru output.
PAD switch: –26 dB pad for handling hot signals.
Ground lift: Reduces unwanted hum from ground loops.
Wide frequency response: 10 Hz to 100 kHz with low distortion.
Phantom-powered: Runs on +48 V phantom power (no batteries required).

Specifications

Type / Feature	Value / Details
Channels	1
Input Connectors	Combo XLR-F + ¼″ TRS jack (unbalanced)
Link / Thru Output	¼″ unbalanced jack (signal passthrough)
Input Impedance	1 MΩ (no PAD) / 47 kΩ (with PAD)
Max Input Level	+16 dBu (no PAD) / +42 dBu (with PAD)
Output Connector	XLR-M (balanced)
Min Load Impedance	600 Ω or greater
Output Max Level	+16 dBu
Distortion (THD+N)	< 0.01 % at 0 dBu
Noise Floor	< –112 dBu (unweighted)
Frequency Response	10 Hz – 100 kHz (–6 dB)
Insertion Loss	0 dB (unity gain)
Controls / Switches	PAD (–26 dB), Ground Lift, Power/Phantom LED
Power Supply	+48 V phantom power (mixer / preamp)
Dimensions	160 × 52 × 106 mm (6.30 × 2.05 × 4.17 in)
Weight	~0.52 kg

Why Choose the Proel D10A?

Professional isolation: Eliminates noise and ensures clean signals on stage or in the studio.
Rugged and reliable: Strong housing for demanding live environments.
Flexible connectivity: Works with guitars, basses, keyboards, and line-level sources.
Studio-grade specs: Wide frequency response, low distortion, and ultra-low noise floor.

Studio & Stage Essential

The Proel D10A Active DI Box is a must-have for musicians, engineers, and sound technicians who need consistent, clean, and interference-free performance. Whether for live PA systems or recording sessions, it ensures your sound translates with accuracy and reliability.
