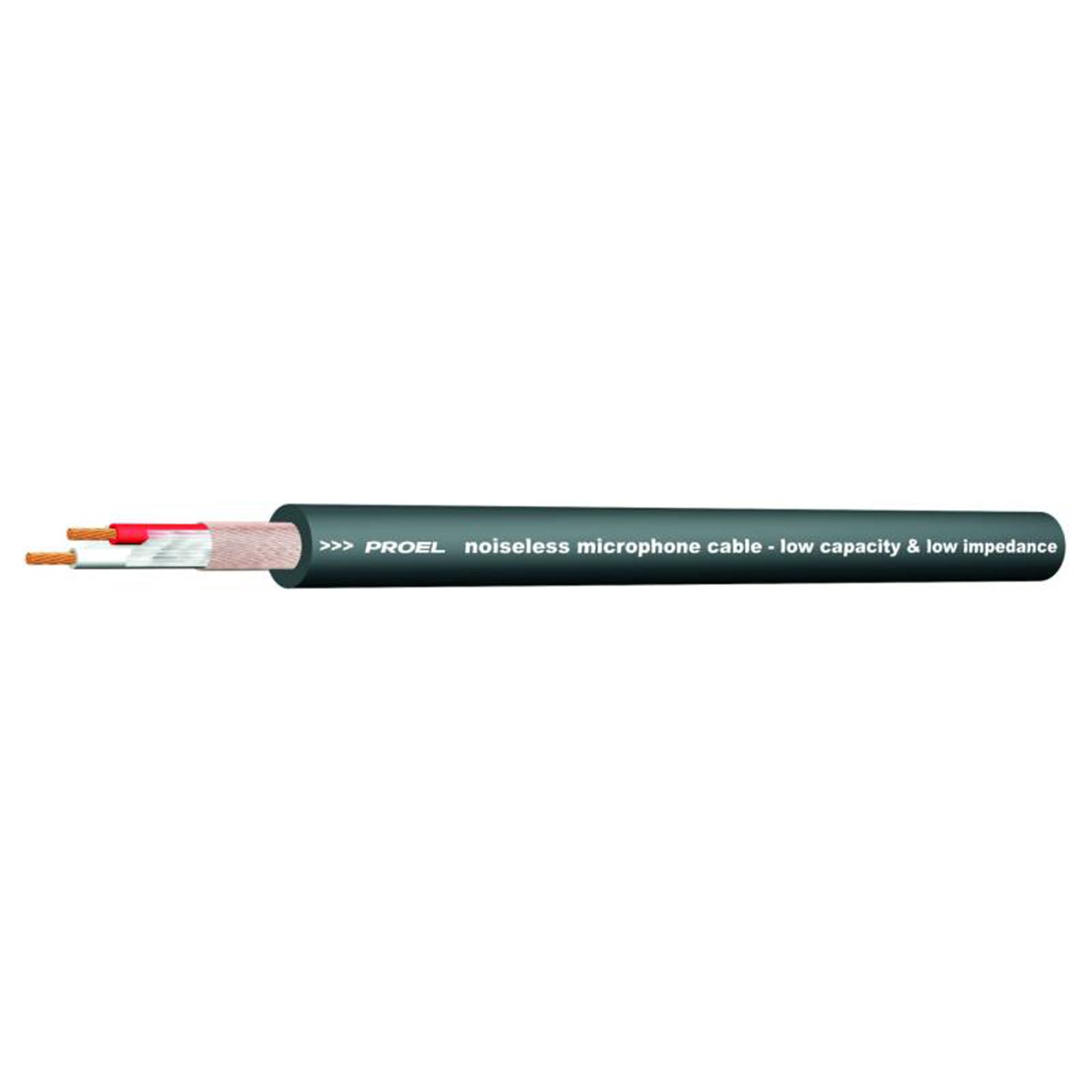

Proel HPC210BK Professional Balanced Microphone Cable

Professional balanced microphone cable (2 x 0,22 mm2) with flexible overall jacket - Dense spiral red copper shield - O.F.C. (Oxygen Free Copper). Black colour. Made in Italy Made in Italy

Professional balanced microphone cable (2 x 0,22 mm²) with flexible overall jacket - O.F.C. (Oxygen Free Copper).Available colors: Black, Blue, Bronze, Green, Purple, Red, White, Yellow.

• Application fields: Recording studios / Microphone connections
• Conductors: Bare copper 24 AWG = 30 x 0.10 mm (0.22 mm²)
• Insulation: PE (Compact polyethylene) Ø 1.60 mm - RED/WHITE
• Shield: Spiral copper 16x5x0.10 mm > 90%
• Jacket: Flexible PVC 60 shore Ø 6.50 mm
• Color: Black
• Electrical resistance:
• 93 Ohm/Km (conductor) @ 20°C
• 20 Ohm/Km (shield) @ 20°C
• Electrical capacitance:
• 46 pF/m (conductor/conductor) @ 1 KHz
• 90 pF/m (conductor/shield) @ 1 KHz
• Velocity of propagation: 80 %
• Operating temperature: -20°C / +70°C
• Working tension:
• < 50 V AC
• < 75 V DC
• Weight: 46 Kg/Km
• Minumum bending radius: 20 x cable section radius
• Packaging:
• 100 m carton reel
• 300 m wooden reel (HPC210BKR300)
• 500 m wooden reel (HPC210BKR500)
