Proel WD10AV2 Active Stage Monitor

Proel WD10AV2 Active 2-Way Coaxial Stage Monitor

The Proel WD10AV2 is an active 2-way coaxial stage monitor designed to deliver high-performance monitoring in a compact form factor. Equipped with a 10-inch woofer and a 1-inch compression driver, it offers a frequency response ranging from 60 Hz to 20 kHz, ensuring clear and detailed sound reproduction across the spectrum. The monitor features a bi-amplified system with a total continuous power of 250 W (200 W for low frequencies and 50 W for high frequencies), capable of reaching a maximum SPL of 123 dB. :contentReference[oaicite:0]{index=0}

Key Features

• Active 2-way coaxial stage monitor
• 10" woofer with 2" voice coil
• 1" compression driver with 1" voice coil
• Bi-amplified system with 250 W continuous power (500 W peak)
• Frequency response: 60 Hz – 20 kHz
• Maximum SPL: 123 dB
• Dual limiter circuit for enhanced protection
• Two EQ presets for monitor or front-of-house (FOH) use
• Low-profile, lightweight plywood cabinet with black ultra-durable polyurethane paint
• Reinforced metal grille with dust protection

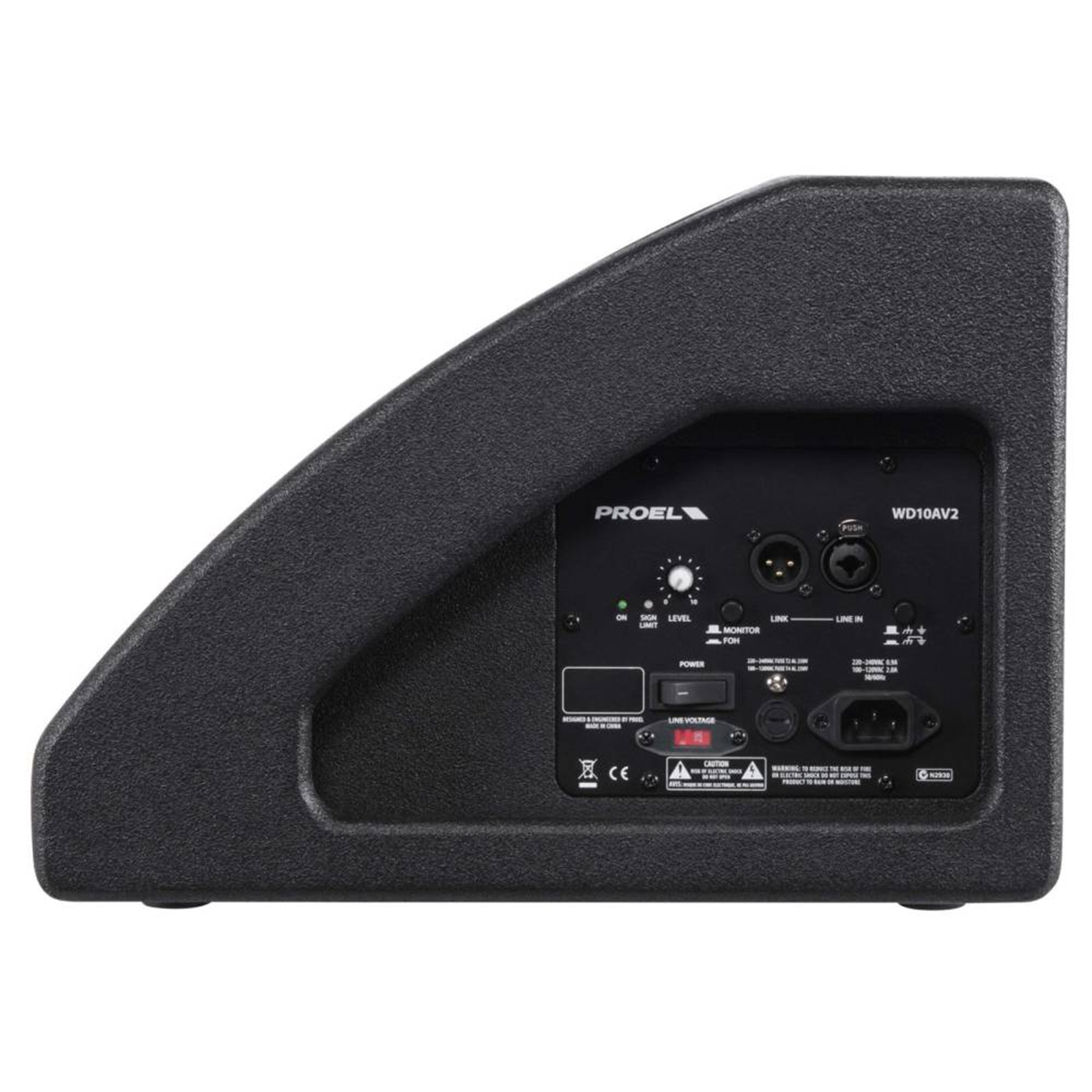

• Recessed connection panel for added protection
• Two recessed handles for easy transport
• Pole socket for versatile mounting options

Specifications
