PROEL WD15AV2 Active 2-Way Coaxial Stage Monitor

PROEL WD15AV2 Active 2-Way Coaxial Stage Monitor – 15-Inch, 900W Peak

The PROEL WD15AV2 is a professional active 2-way coaxial stage monitor designed for live performances, rehearsal spaces, venues, houses of worship, and sound reinforcement applications. Its 15-inch woofer and 1-inch compression driver provide powerful low-frequency response, clear vocal reproduction, and consistent monitoring across the stage.

With a combined continuous amplifier output of 450 watts and 900 watts peak, the WD15AV2 can deliver up to 126 dB SPL. Its coaxial design, analog processing, dedicated Monitor and FOH presets, durable plywood cabinet, and pole-mount capability allow it to function both as a floor monitor and as a compact PA loudspeaker.

Key Features

• Active 2-Way Coaxial Design: Combines the low- and high-frequency drivers in a coaxial configuration for consistent sound dispersion.
• 15-Inch Woofer: Features a 3-inch voice coil for powerful low-frequency reproduction and high-output performance.
• 1-Inch Compression Driver: Uses a 1.35-inch voice coil for clear and detailed high-frequency reproduction.
• 900W Peak Power: Delivers 450 W continuous total amplifier power and up to 900 W peak output.

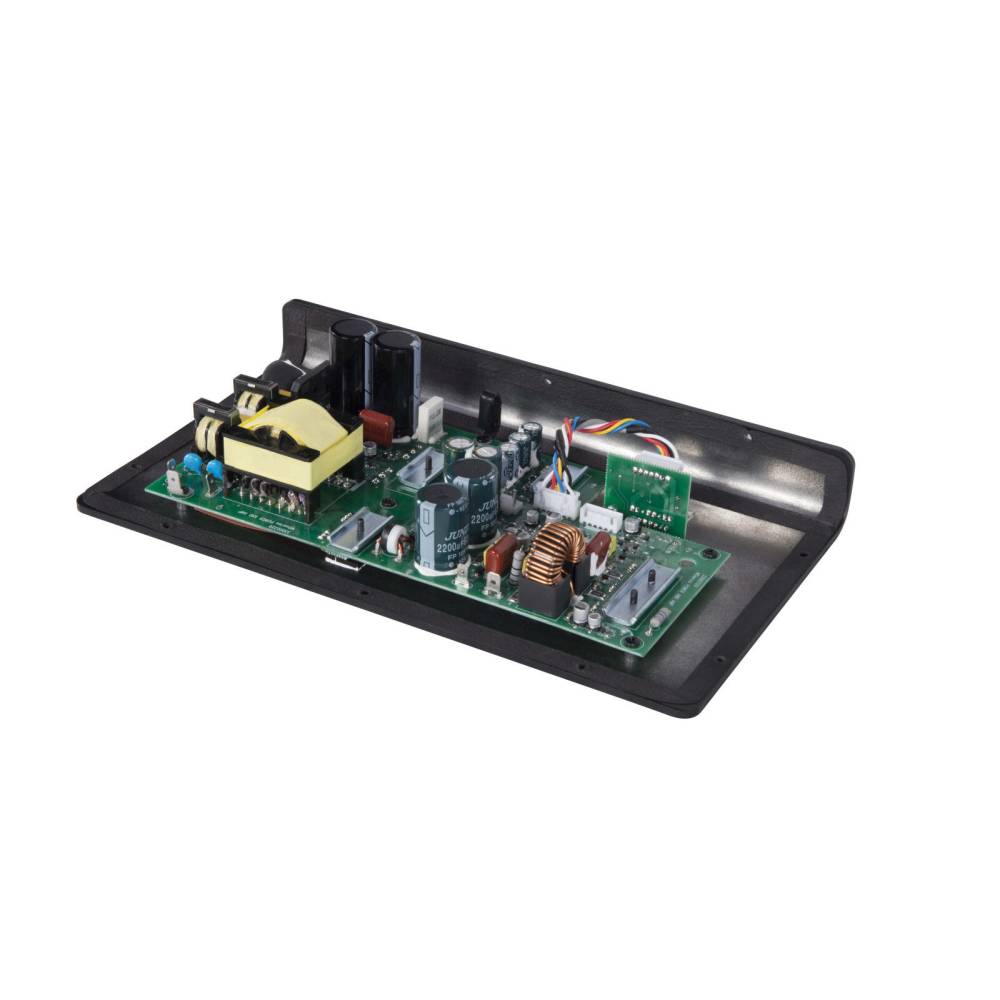

• Hybrid Amplification: Uses a 400 W Class-D LF amplifier and 50 W Class-AB HF amplifier with SMPS power supply.
• 126 dB Maximum SPL: Provides strong output suitable for demanding stage-monitor applications.
• 45 Hz–20 kHz Frequency Response: Covers a broad frequency range for vocals, instruments, playback, and general monitoring.
• 60° Coverage: Provides controlled and even sound dispersion.
• Monitor & FOH Presets: Two EQ presets optimize response for floor-monitor or front-of-house use.
• Dual Limiter Circuit: Helps protect the system during high-level operation.

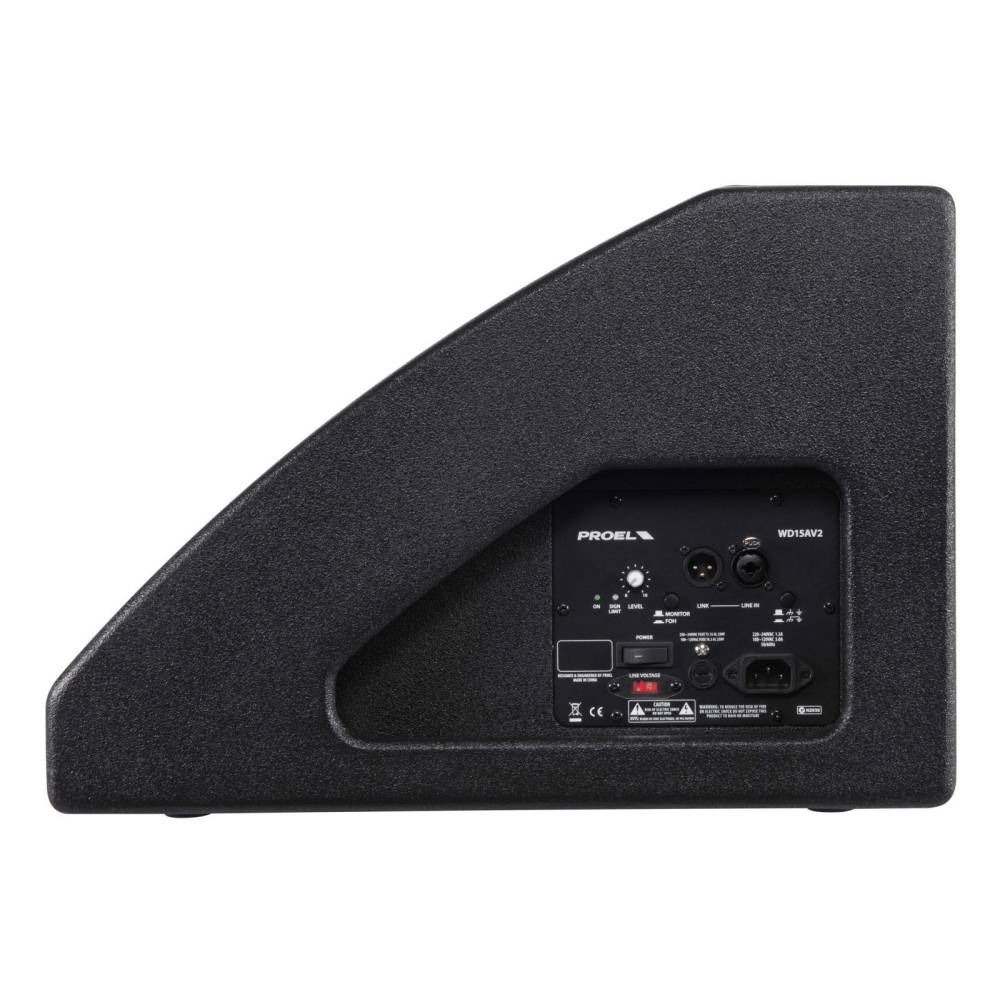

• Combo Input: Accepts XLR or 1/4-inch jack connections.
• XLR Link Output: Allows the audio signal to be passed to another loudspeaker.
• Ground Lift: Helps reduce unwanted ground-loop noise in compatible setups.
• Plywood Cabinet: Durable enclosure finished with black anti-scratch polyurethane coating.

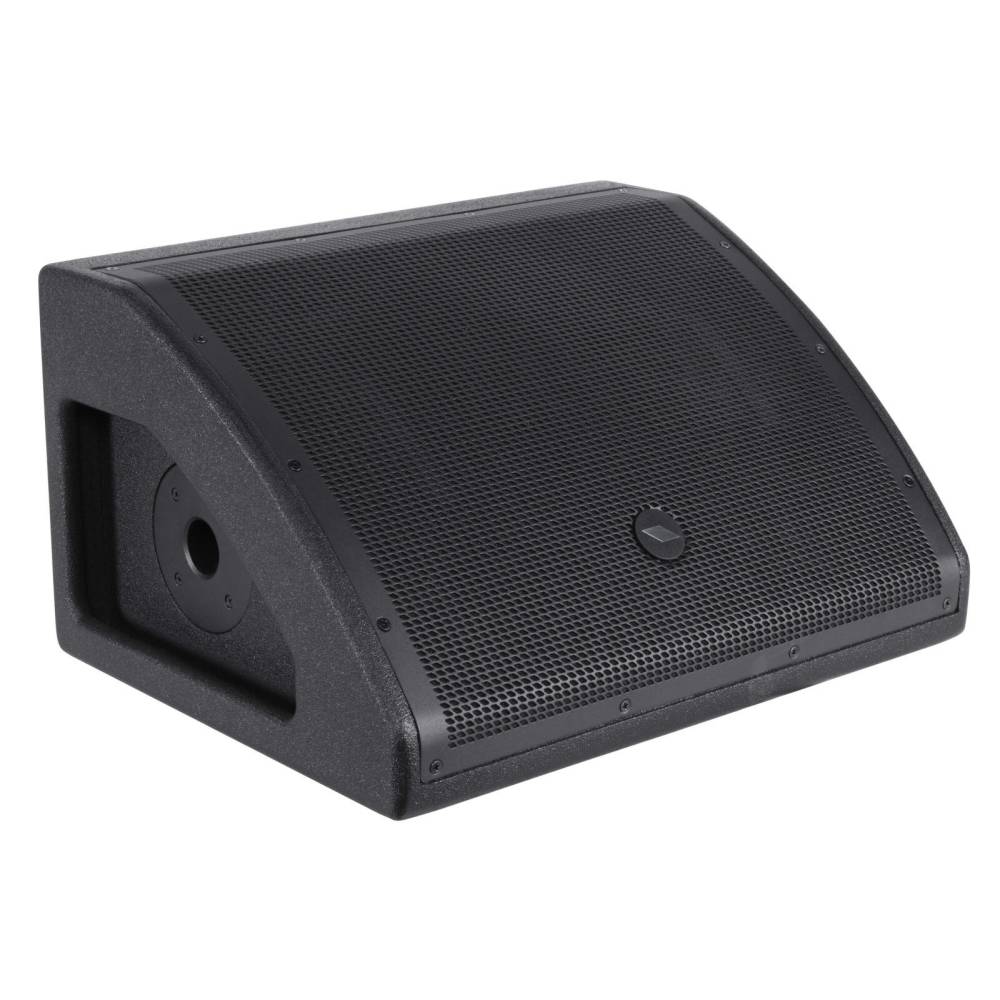

• 36° Monitor Angle: Low-profile wedge design directs sound toward the performer.

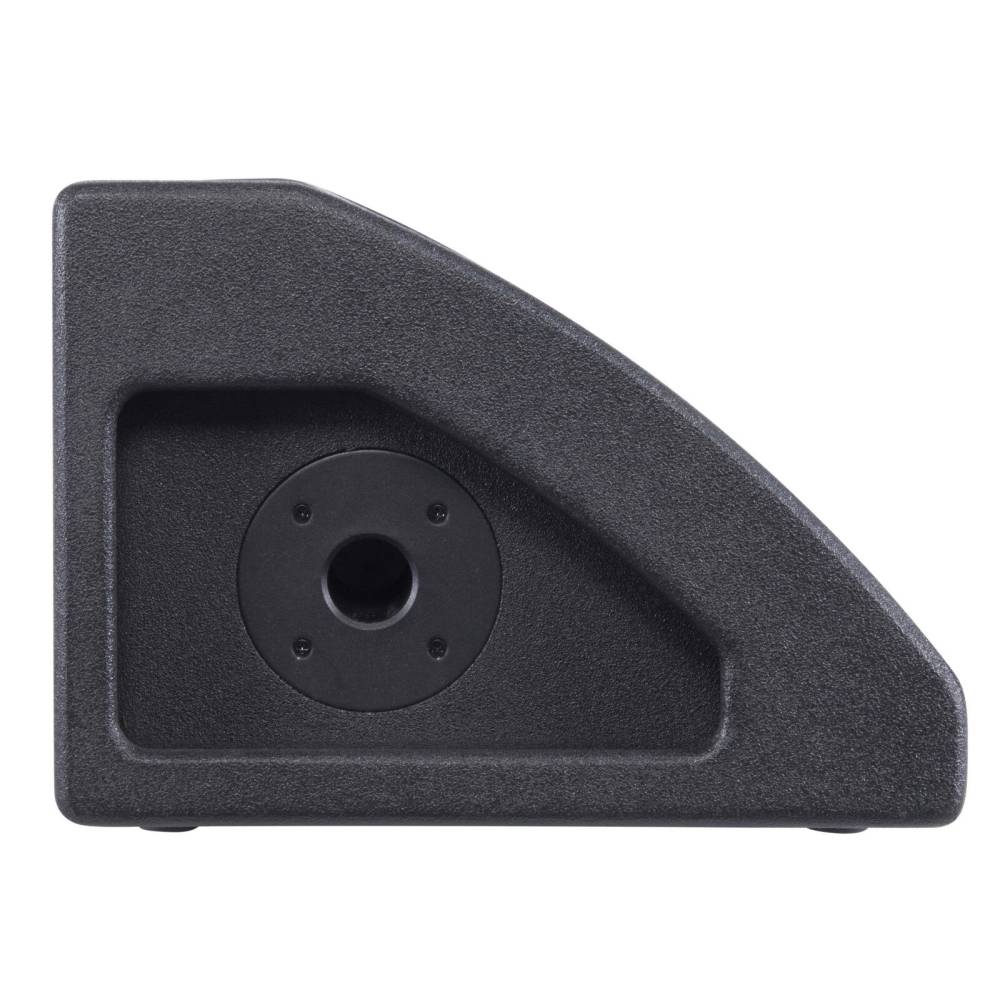

• Pole Socket: Allows the WD15AV2 to be used as a conventional PA speaker when required.
• Recessed Handles: Two side handles support easier transport and setup.

Specifications

Why Choose the PROEL WD15AV2?

The WD15AV2 combines high output, wide frequency response, coaxial driver design, and a durable low-profile cabinet for professional stage monitoring. Its 15-inch woofer provides substantial low-frequency support, while the dedicated Monitor and FOH presets allow the speaker to be adapted for both wedge-monitor and conventional PA applications.

Powerful 15-Inch Stage Monitor for Live Sound Applications

The PROEL WD15AV2 delivers up to 126 dB SPL from a 15-inch coaxial system with 450 W continuous amplification and 900 W peak power. Its rugged plywood cabinet, versatile connectivity, pole-mount capability, and dedicated monitor angle make it suitable for musicians, vocalists, bands, venues, rehearsal rooms, houses of worship, and professional live-sound systems.
