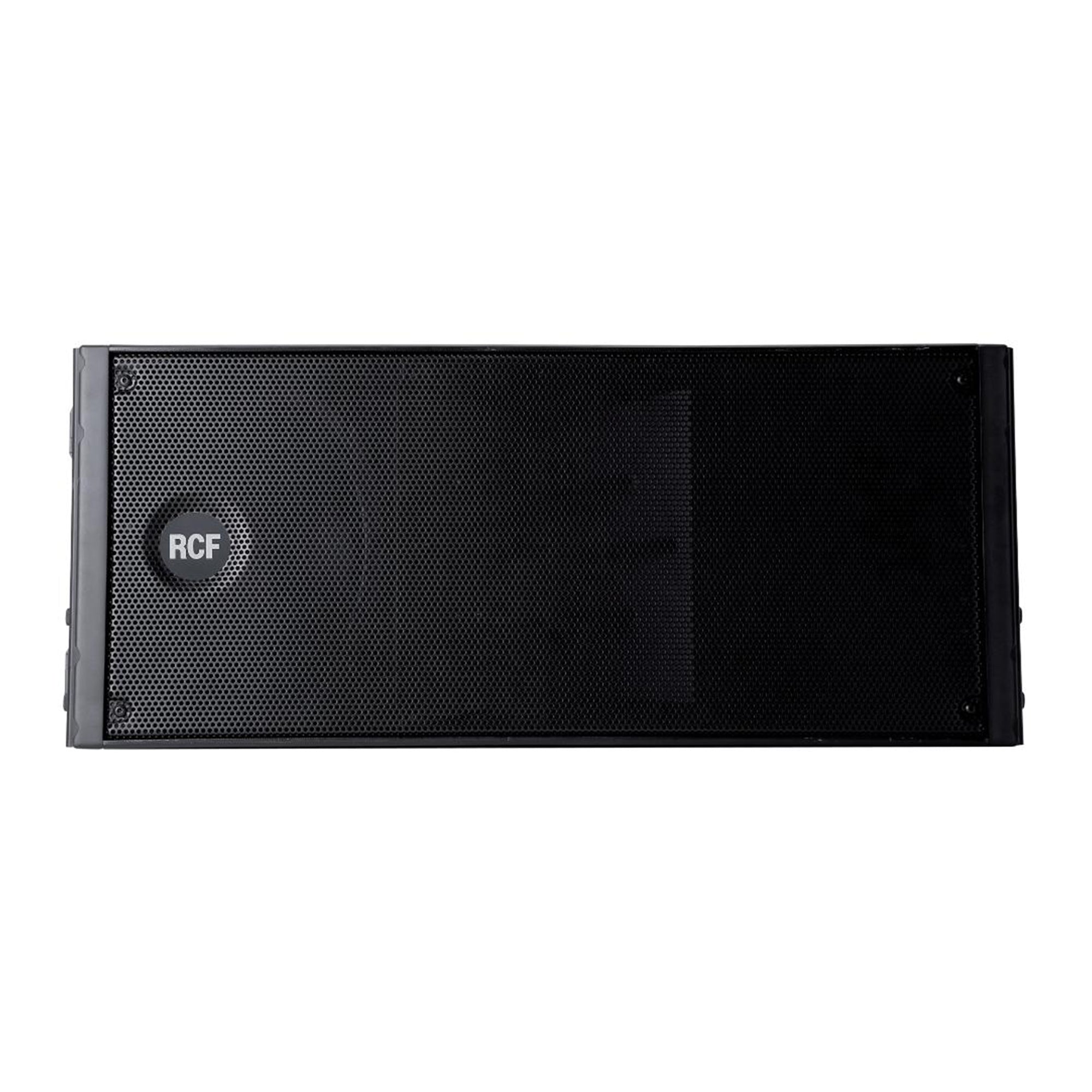

RCF hdl 20-a active line array module

AED 21,011; AED 21,011
Unit price: per

Please hurry! Only 0 left in stock

Quantity:

I agree with

Description
Reviews
Shipping & Delivery
Warranty
Return & Exchange

FEATURES

1400 Watt Peak power - 700 Watt RMS
135 dB max SPL
55 Hz 20 kHz frequency response
2 x 10" Woofers
1 x 3" Compression Driver
DSP controlled Input section with selectable presets
Tour grade safe and solid variable mechanics
Composite PP enclosure structurally wooden reinforced

The careful acoustic design, no compromise transducers and a unique, composite cabinet, design make the HDL 20-A the preferred tool of many professionals. Perfect in live sound reinforcement and reliable installed situations. The HDL 20-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The processing includes cluster and HF projection correction and special new presets for indoor and high curving situations. The system features state of the art RCF transducers, two powerful 10” for a solid bass reproduction and a large format 3” voice coil compression driver to deliver vocal clarity and high definition with an incredible dynamic. The HDL 18-AS is the ideal flyable bass complement for the HDL 20-A array system.

Frequency Response:

55 Hz ÷ 20000 Hz

Max SPL @ 1m:

135 dB

Horizontal coverage angle:

100°

Vertical coverage angle:

15°

Compression Driver:

1 x 2.0'', 3.0'' v.c

Woofer:

2 x 10'', 2.5'' v.c

Input signal:

bal/unbal

Input connectors:

XLR

Output connectors:

XLR

Input sensitivity:

-2 dBu/+4 dBu

Crossover Frequencies:

800 Hz

Protections:

Thermal, RMS

Limiter:

Soft Limiter

Controls:

Cluster, HF, High curving, Indoor

Total Power:

1400 W Peak, 700 W RMS

High frequencies:

400 W Peak, 200 W RMS

Low frequencies:

1000 W Peak, 500 W RMS

Cooling:

Convection

Connections:

Powercon IN/OUT

Cabinet/Case Material:

PP Composite

Hardware:

Rigging flyware

Handles:

2 side, 2 back

Grille:

Steel

Color:

Black,

Height:

294 mm / 11.57 inches

Width:

705 mm / 27.76 inches

Depth:

445 mm / 17.52 inches

Weight:

30.2 kg / 66.58 lbs
