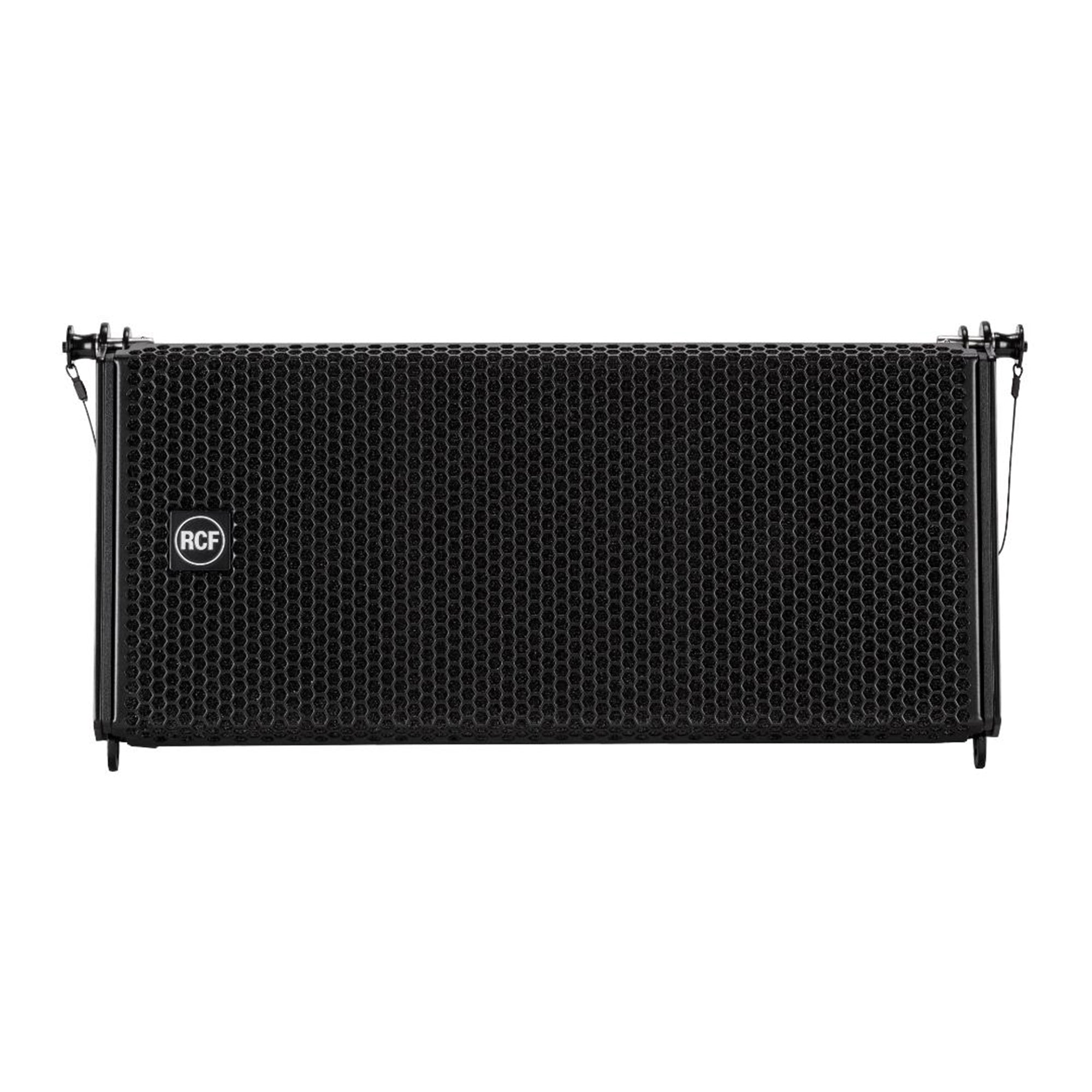

RCF hdl 6-a active line array module
- AED 10,855
- AED 10,855
- Unit price
- per
Please hurry! Only 0 left in stock
Description
xFEATURES
- 1400 W, two-way amplification
- 131 dB max SPL
- 1.7" voice coil neodymium compression driver
- 2 x high power neodymium 6.0"woofers
- 48 kHz, 32 bit floating point DSP processing
- Symmetrical design
- Extremely low weight
- FiRPHASE processing
The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic. The HDL 12-AS is the ideal flyable bass complement for the HDL 6-A array system.
Frequency Response:
65 Hz ÷ 20000 Hz
Max SPL @ 1m:
131 dB
Horizontal coverage angle:
100°
Vertical coverage angle:
10°
Compression Driver:
1 x 1.0'' neo, 1.75'' v.c
Woofer:
2 x 6.0'' neo, 2.0'' v.c
Input signal:
bal/unbal
Input connectors:
XLR
Output connectors:
XLR
Input sensitivity:
+4 dBu
Crossover Frequencies:
900 Hz
Protections:
Thermal, RMS
Limiter:
Soft Limiter
Controls:
HF correction
Total Power:
1400 W Peak, 700 W RMS
High frequencies:
400 W Peak, 200 W RMS
Low frequencies:
1000 W Peak, 500 W RMS
Cooling:
Convection
Connections:
Powercon IN/OUT
Cabinet/Case Material:
PP Composite
Hardware:
Array fittings
Handles:
2 Back
Grille:
Steel
Color:
Black, White
Height:
237 mm / 9.33 inches
Width:
470 mm / 18.5 inches
Depth:
377 mm / 14.84 inches
Weight:
11.6 kg / 25.57 lbs
