Roland Electronic Drum Kit TD-1DMK

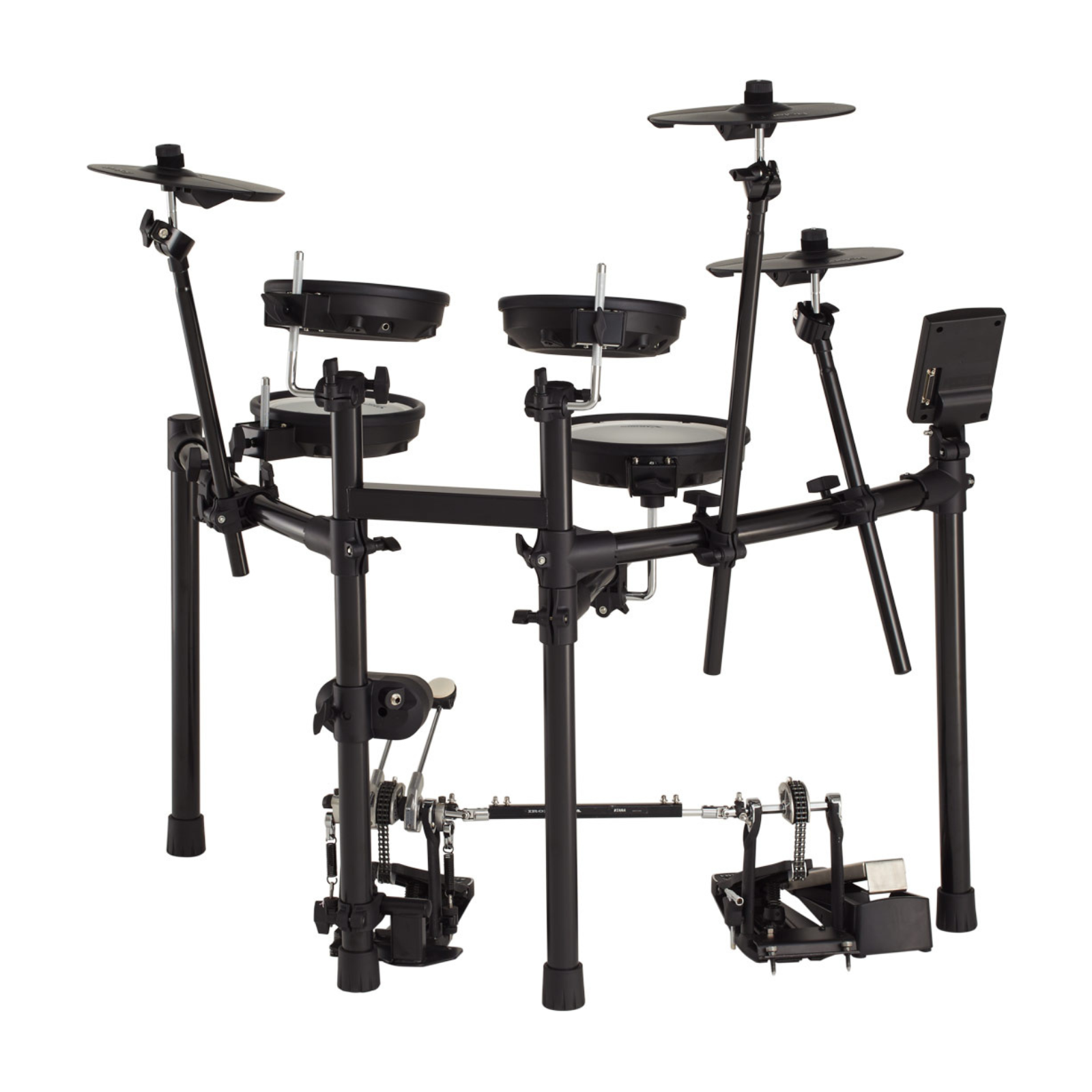

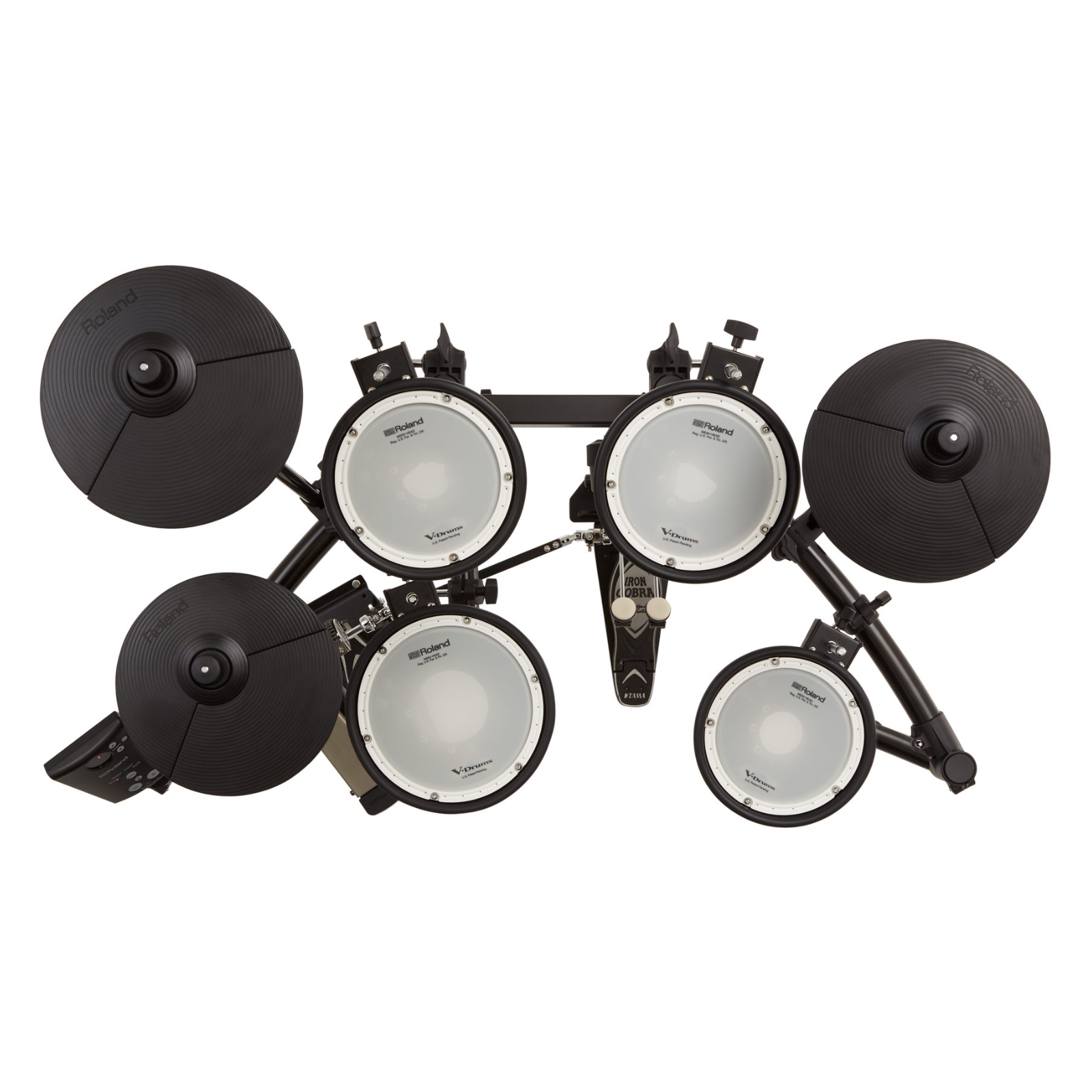

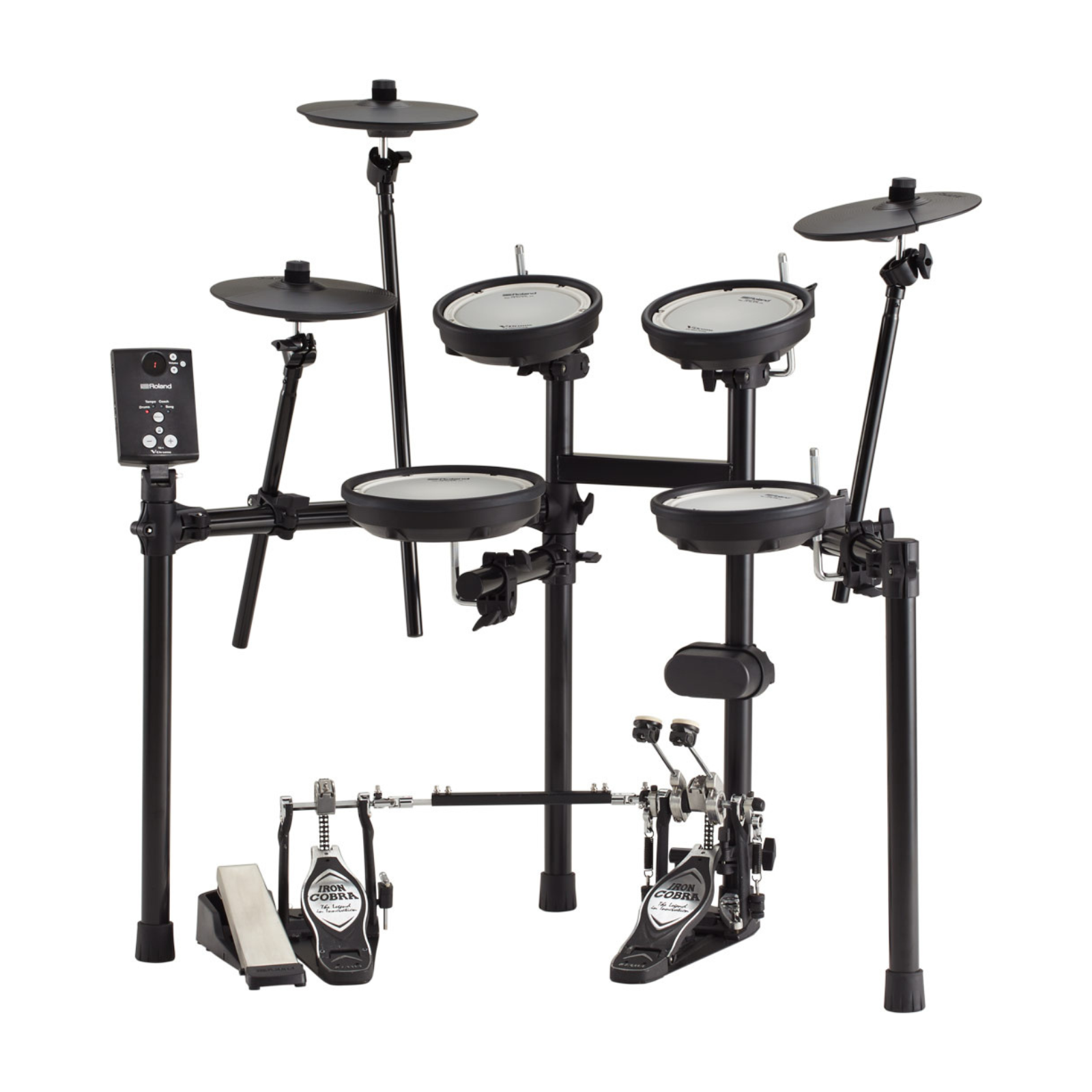

SPECIFICATIONSKit configuration (*1)Kick, Snare, Hi-hat, Hi-hat control pedal, Tom x 3, Crash, Ride, Drum stand

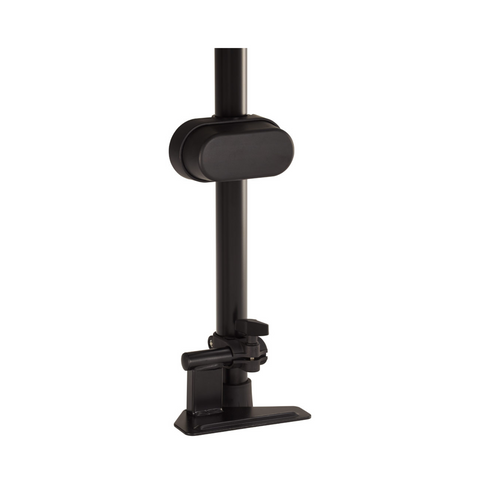

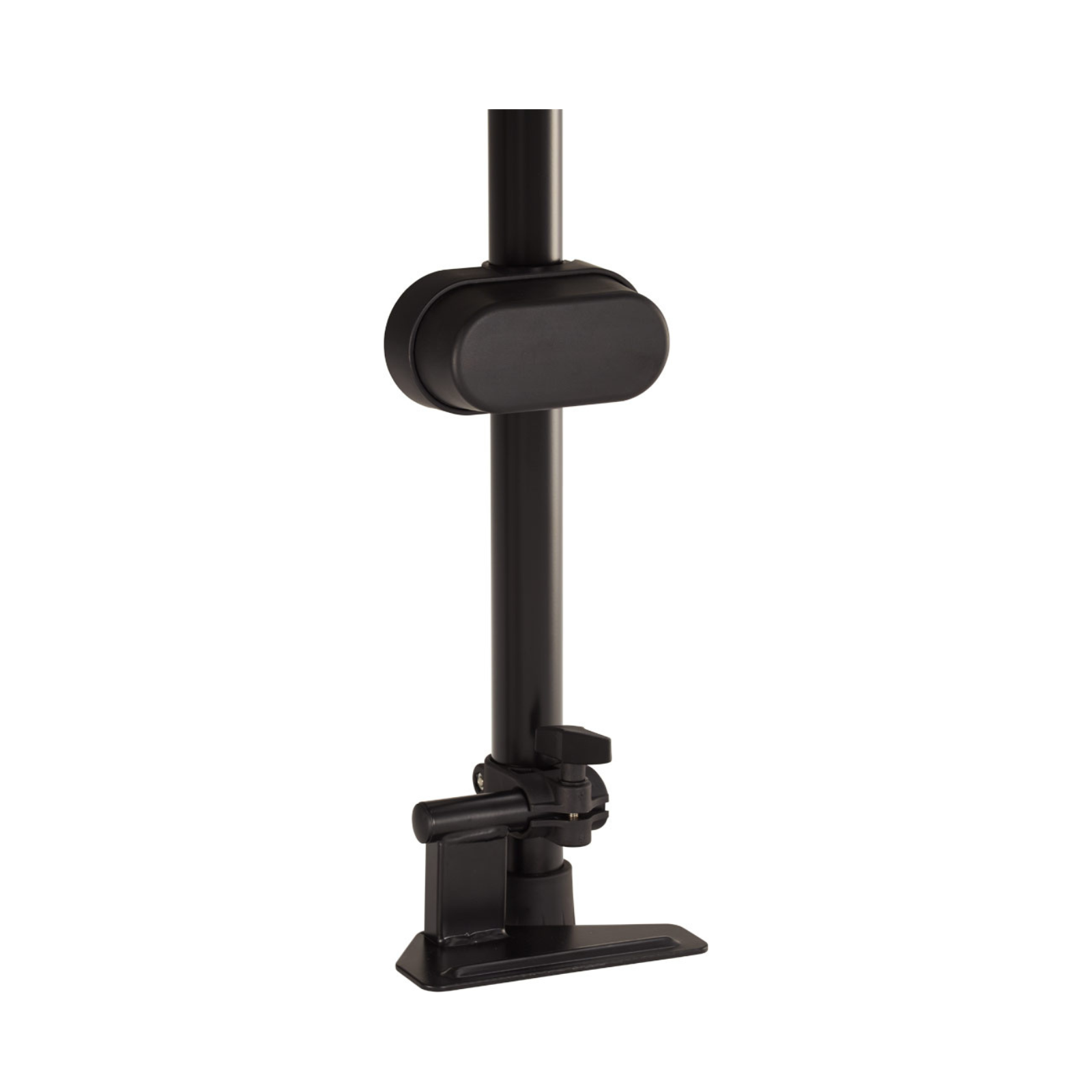

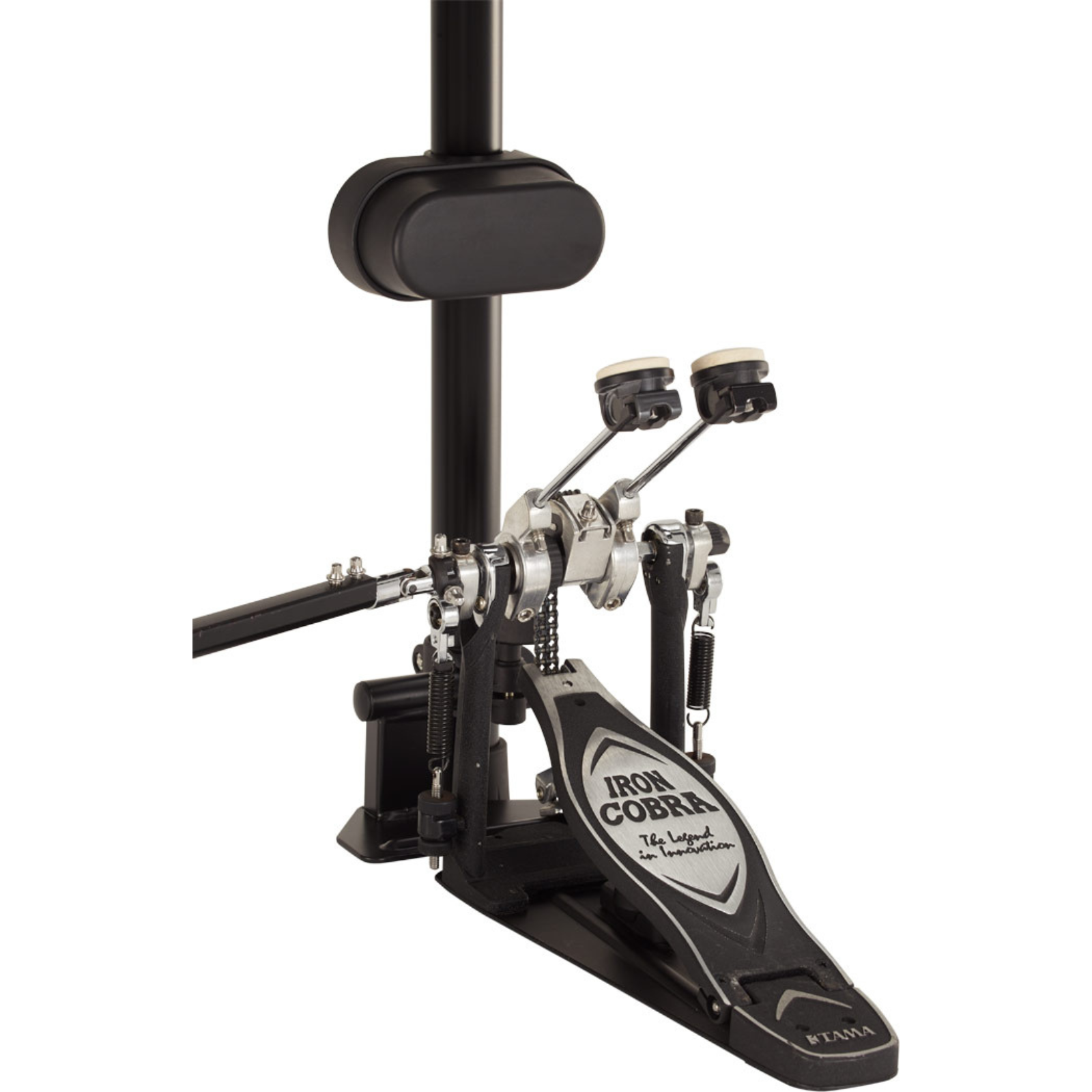

Kick: Compatible for using a double kick pedal
Snare (PDX-8): 8 inches, double mesh head (2-ply), dual trigger (head, rim)
Hi-hat (CY-5): 10 inches (fixed-type)
Hi-hat control pedal: Detectable for half-open stroke
Tom (PDX-6A) x 3: 6 inches, double mesh head (2-ply), single trigger (Head) *2
Crash (CY-5): 10 inches, dual trigger (bow, edge)
Ride (CY-5): 10 inches, dual trigger (bow, edge)
Drum stand: Four-post type rack standDrum kits15Coach functions (10 modes)Time check (easy)
Time check (hard)
Change-up
Auto up/down
Quiet count
Tempo check (easy)
Tempo check (hard)
Stroke balance
Timer
RecordingSongs15MetronomeTempo (40–260)
Rhythm type (5 types)
Sounds (8 types)

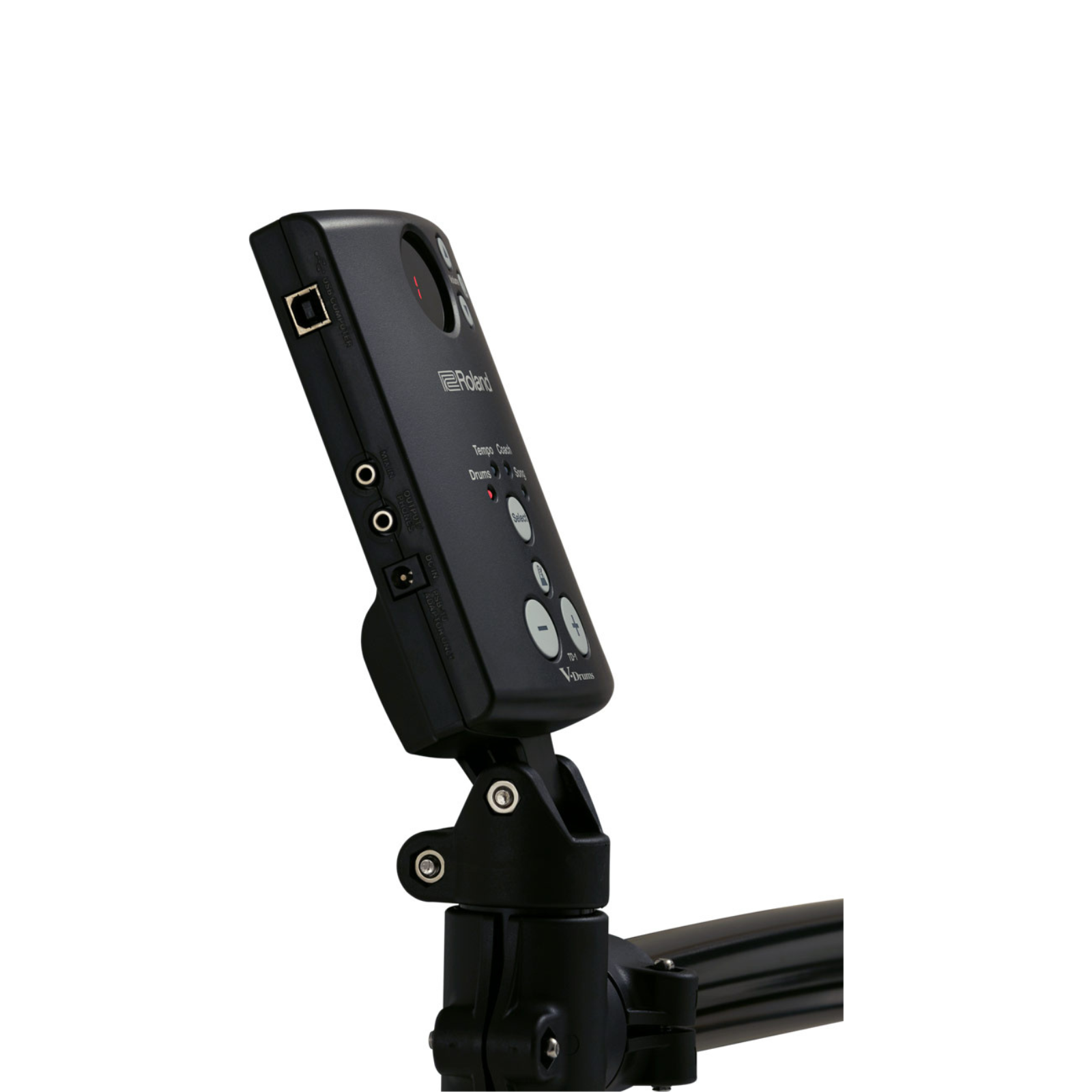

Volume (10 levels)Display7 segments, 3 characters (LED)ConnectorsOUTPUT/PHONES jack: Stereo miniature phone type
MIX IN jack: Stereo miniature phone type
USB COMPUTER port: USB B type
TRIGGER INPUT connector: DB-25 type (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-hat, Crash 1, Crash 2, Ride, Hi-hat control)InterfaceUSB MIDI (transmitting only)Power supplyAC adaptorCurrent draw150 mAAccessoriesSetup Guide
Owner's Manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor

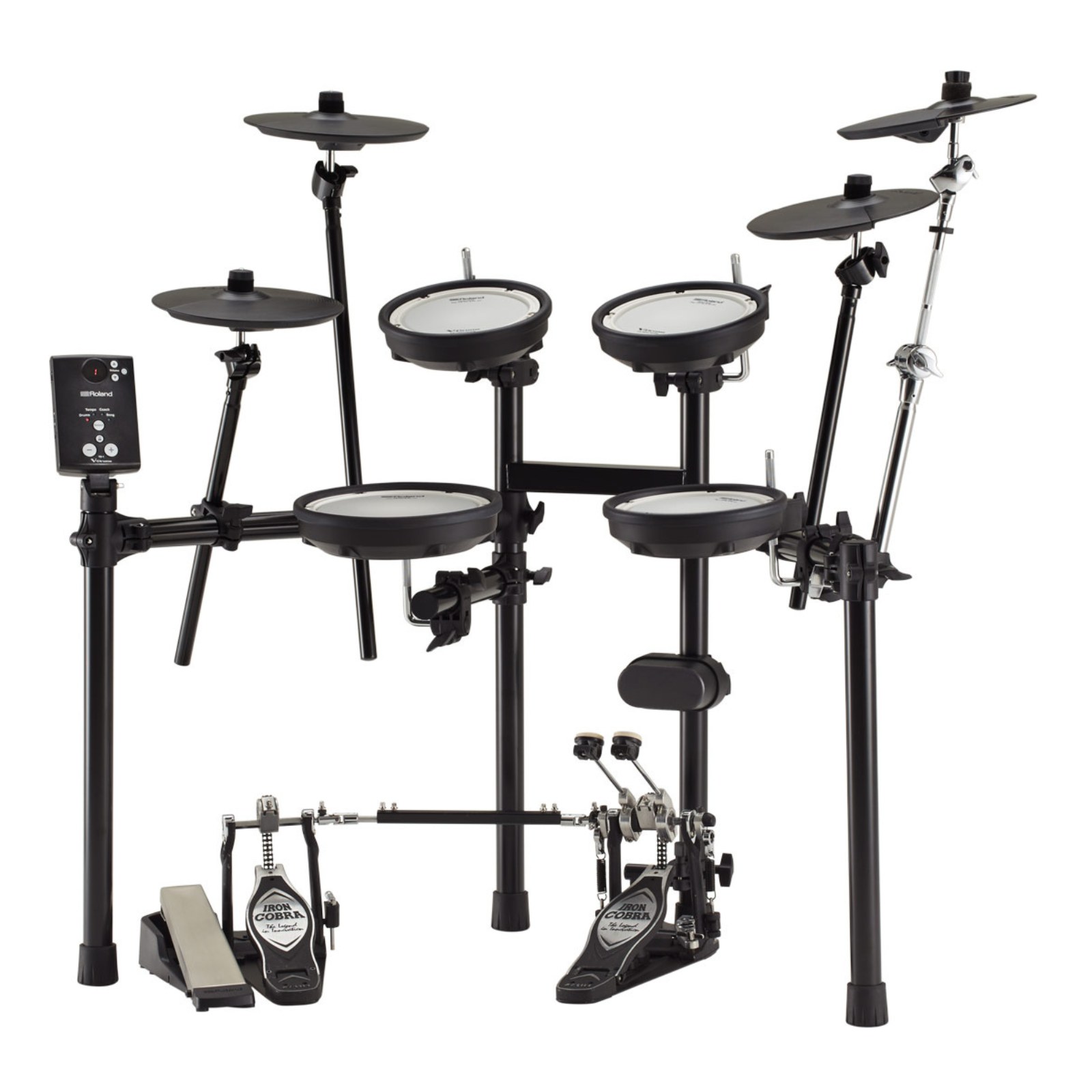

Special connection cableOptions (sold separately)Additional crash cymbal (Crash2): CY-5, MDY series *3
Kick: KD-9, KD-10, KT-9, KT-10
Personal drum monitor: PM series
V-Drums mat: TDM seriesSIZE (INCLUDING SOUND MODULE, KICK PAD, KICK PEDAL AND DRUM THRONE)Width1,200 mm
47-1/4 inchesDepth1,100 mm
43-5/16 inchesHeight1,200 mm
47-1/4 inches
